Electronic Tension Meters ET Series

Description

Features:

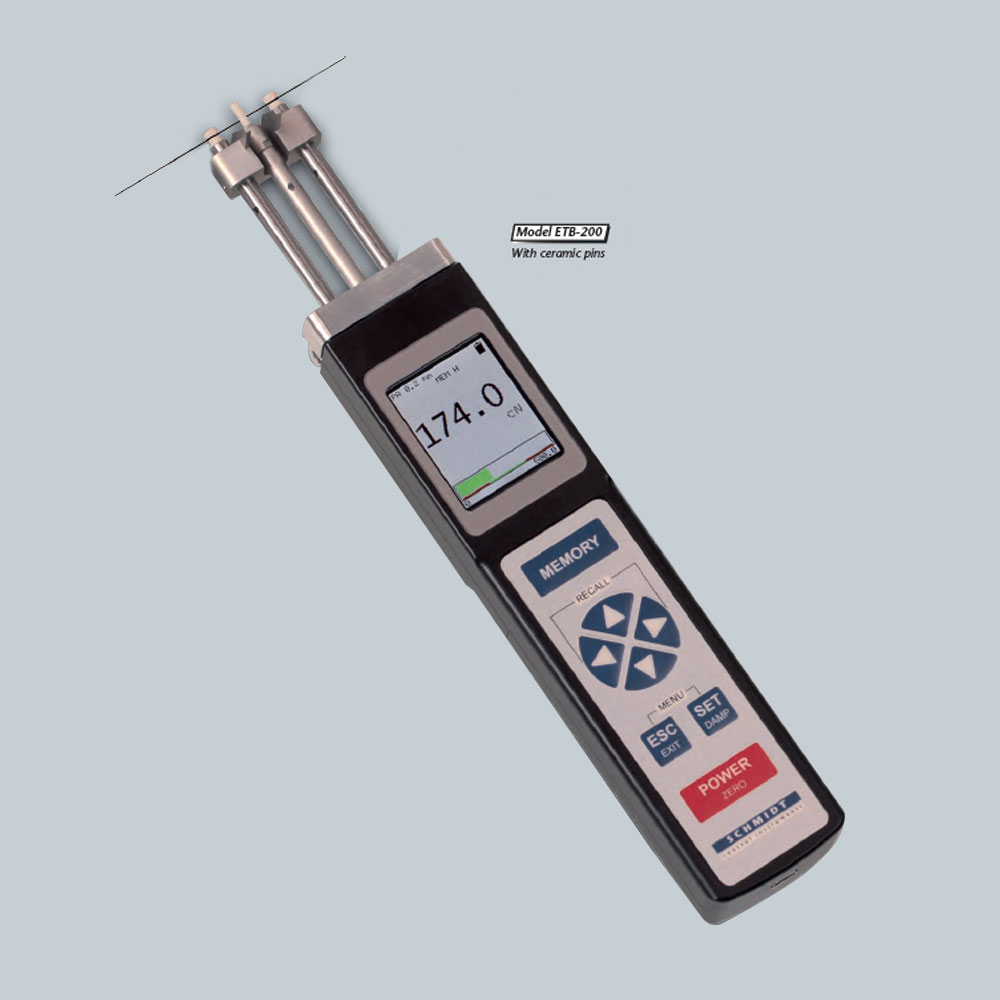

Models ETB and ETX with ball-bearing mounted, V-grooved guide rollers for line speeds up to vmax. 2000 m / min
Models ETPB and ETPX with ceramic pins for line speeds up to vmax. 6000 m / min
Filament guide for easy material acquisition of running filaments
Aluminium housing
LiPo accumulator (approx. 20 hours continous operation) with AC adapter
CE approved (tested for electromagnetic compatibility)
Inspection Certificate with Calibration Report optionally available

MODEL		Tension Ranges cN	Measuring Head Width* mm	SCHMIDT Calibration** with runningfilament approx. 100 m / min
ETB-100	ETX-100	0.5 – 100.0	24	PA: 0.20 mm Ø
ETB-200	ETX-200	2.0 – 200.0	24	PA: 0.20 mm Ø
ETB-500	ETX-500	2.0 – 500.0	24	PA: 0.20 mm Ø
ETB-1000	ETX-1000	3 – 1000	38	PA: 0.30 mm Ø***
ETB-2000	ETX-2000	3 – 2000	38	PA: 0.50 mm Ø***

Model ETP

MODEL		Tension Ranges cN	Measuring Head Width* mm	SCHMIDT Calibration** with running filament approx. 60 m / min
ETPB-100	ETPX-100	0.5 – 100.0	22	PA: 0.20 mm Ø
ETPB-200	ETPX-200	2.0 – 200.0	22	PA: 0.20 mm Ø
ETPB-500	ETPX-500	2.0 – 500.0	22	PA: 0.20 mm Ø

Calibration: According to SCHMIDT factory procedure
Accuracy: ± 1 % FS* and ± 1 Digit, typical ± 0.5 % FS*
Units: cN, g, N or lb, switchable
Overrange (approx.): 10 % FS*, without accuracy guarantee
Overload protection: 200 % FS*
Measuring principle: Strain gauge bridge
Measuring roller deflection: 0.5 mm max.
Damping: Adjustable electronic damping (Moving averaging)
Sampling rate internal: Approx. 1 kHz
Sampling rate: Max. 200 Hz (200 readings/sec)
Display update time: 2 times / sec
Display: Colour-TFT 128 x 160
3 display modes: Numeric, Numeric + bargraph, Numeric + graph (time-tension)
Memory: Last, AVG, MIN, MAX, STD
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Power supply: LiPo accumulator (20 h continuous use) and mains adapter 100 – 240 V AC
Housing material: Aluminium
Housing dimensions: 182 x 54 x 41 mm (L x W x H)
Weight, net (gross): Approx. 310 g (1220 g)
