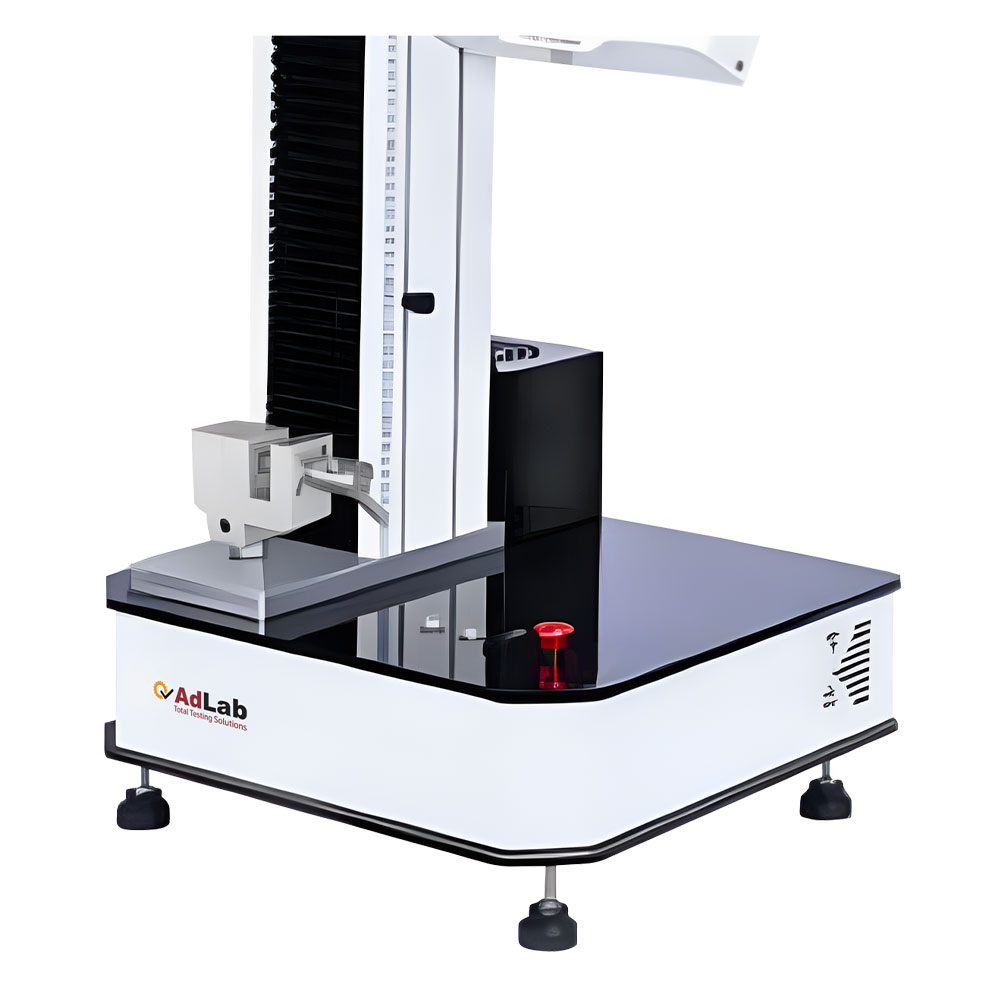

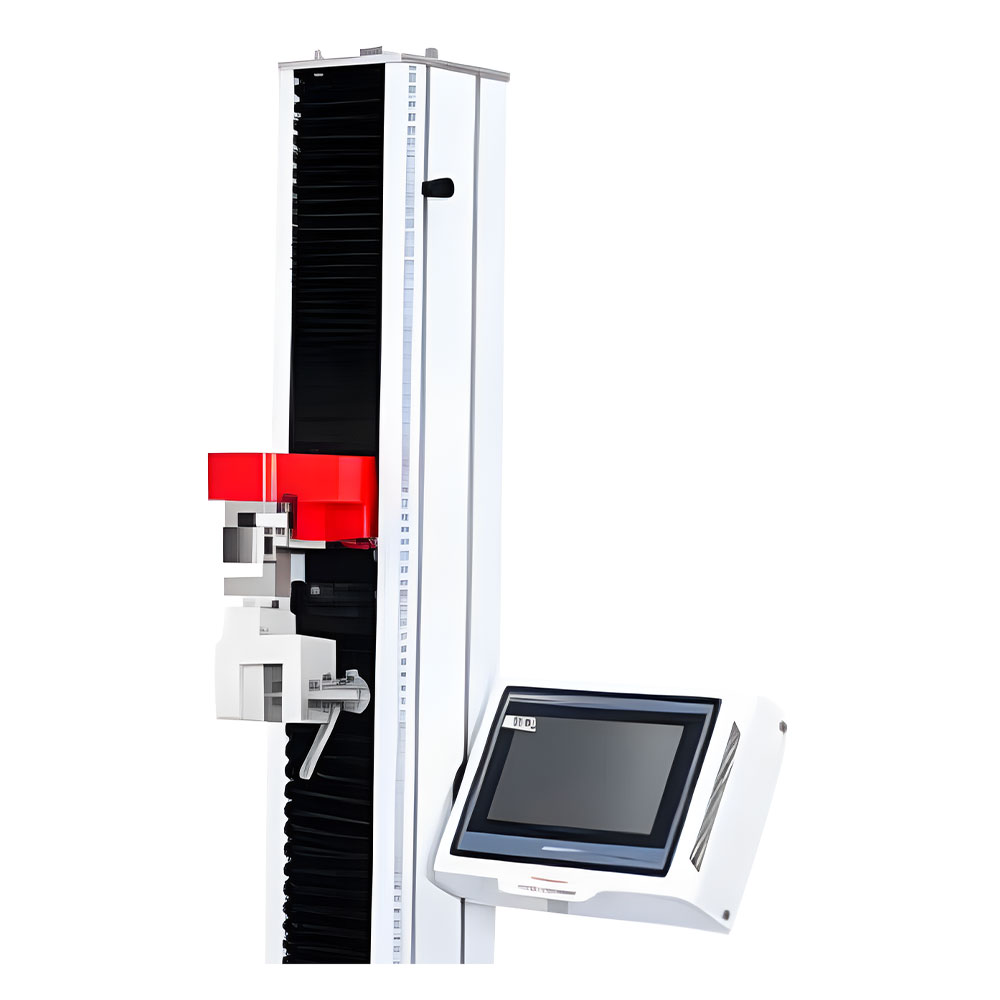

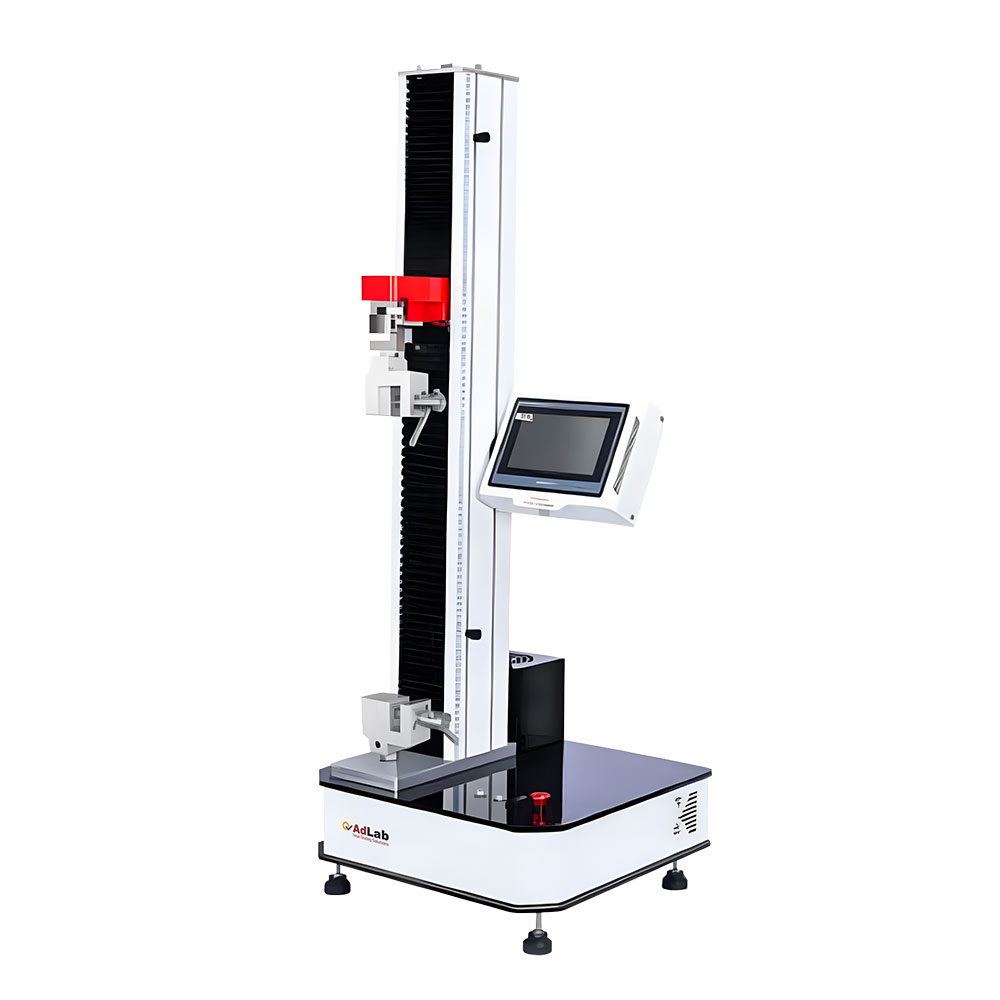

Fabric Tensile Tester

The Fabric Tensile Tester is AC servo-driven. It has ball screws to provide a stable pulling force. This setup leads to higher testing accuracy. The fabric tensile tester machine’s software is compatible and powerful. It outputs many test indexes, such as displacement, greatest force, elongation, and stress. Fabric Tensile Tester also has many safety features to protect the instrument and the operator. Created the tensile tester for textiles, leather, and footwear.

It can perform tension, compression, bending, tearing, shearing, peeling, and top-breaking tests. It applies to many international standards. These include ISO 9073-3, ISO13934-1/2, ASTM D5034, ASTM D5035, ISO 3377-2, ISO 13937-3, FZ/T 01030, GB/T 19976, and more.

Applicable up to a series of tensile testing standards

tensile tester machine applies to many standards and optional standards such as ISO 3377-2， ISO 13934-1/2， ISO 13937-2/3， ISO 20932-1， ASTM D5034， ASTM D5035， ASTM D5587， GB/T3917.2， FZ/T 01030， ISO 9073-4, ISO13934-1/2, ISO 9073-3, ISO 13937-2/3, ISO 4674-1, GB/T 3917.4, GB/T 3923.1, ISO 2062, ASTM D6797, GB/T 19976.

Main Technical Parameters

Test capacity 200kg (500kg is optional and the appearance will change)
Test level class 1
Max travel 850 mm (without fixture)
Travel accuracy ≤1%
Traverse speed 1mm/min ~ 500mm/min
Speed accuracy ≤1%
Test force range 0.2%~100% FS
Force accuracy ≤1%
Power 220 /110V 50Hz/60Hz
Weight 70kg
Dimension 50*50*120CM (D*W*H)
Software configuration (standard) version A of the test system, with a single-step test
Software configuration (optional) version C of the testing system can achieve multi-step test

Why Choose the Fabric Tensile Tester?

Choose the Fabric Tensile Tester for its unmatched accuracy, versatility, and compliance with global testing standards. Driven by a high-precision AC servo motor and ball screw system, it delivers exceptional control and repeatability across various test modes. The intelligent software (Version A or C) provides comprehensive data analysis with single-step and multi-step test options. Designed for safety and durability, the system includes multiple protection features for both operator and instrument. It meets international standards such as ISO 13934-1/2, ASTM D5035, ISO 3377-2, and GB/T 19976, ensuring dependable results across textile, leather, and footwear industries. With superior speed accuracy (≤1%) and a broad force range (0.2%–100% FS), this tester is ideal for advanced material performance analysis.
