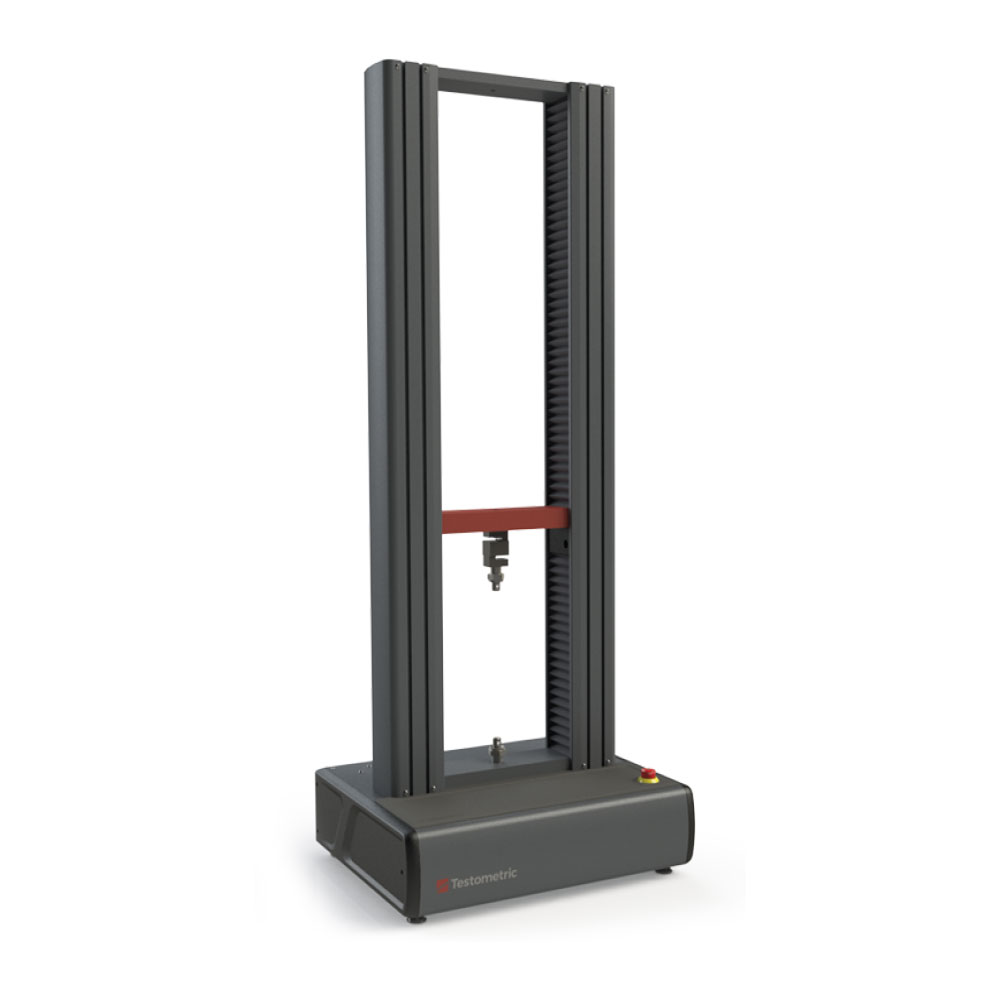

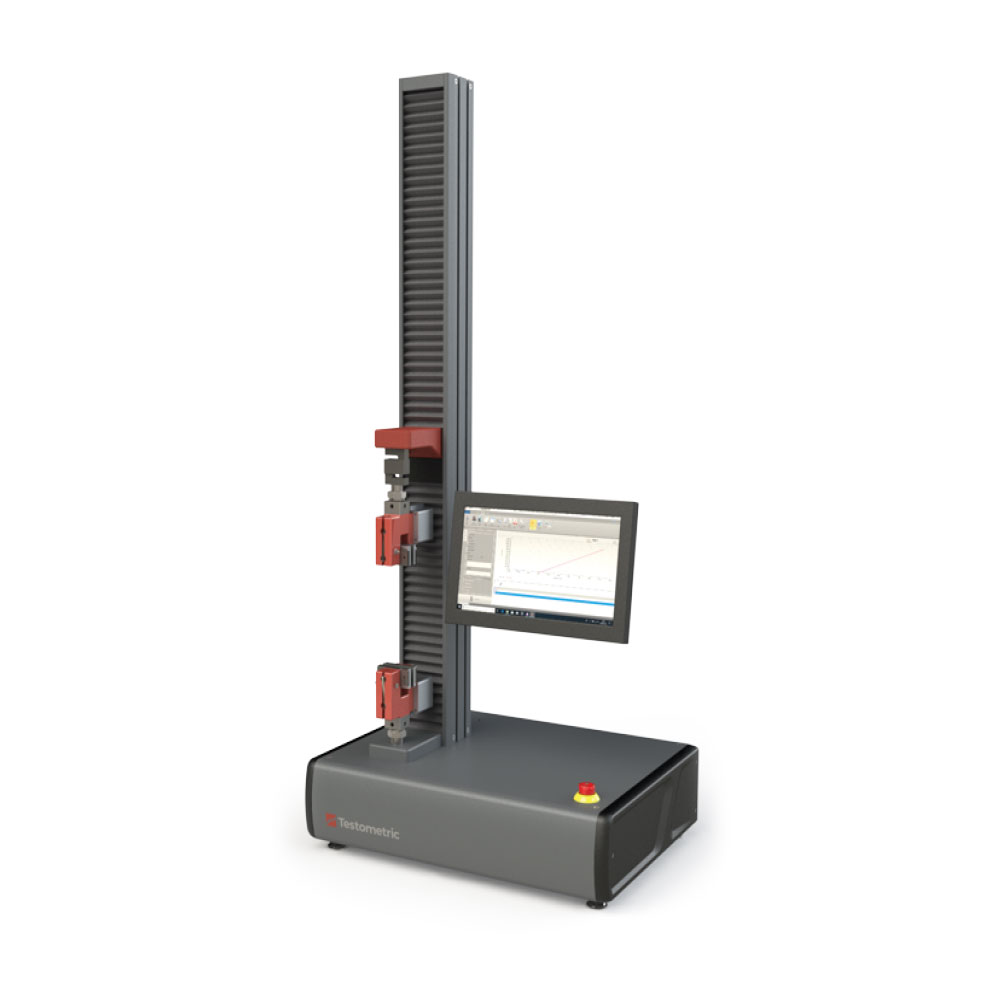

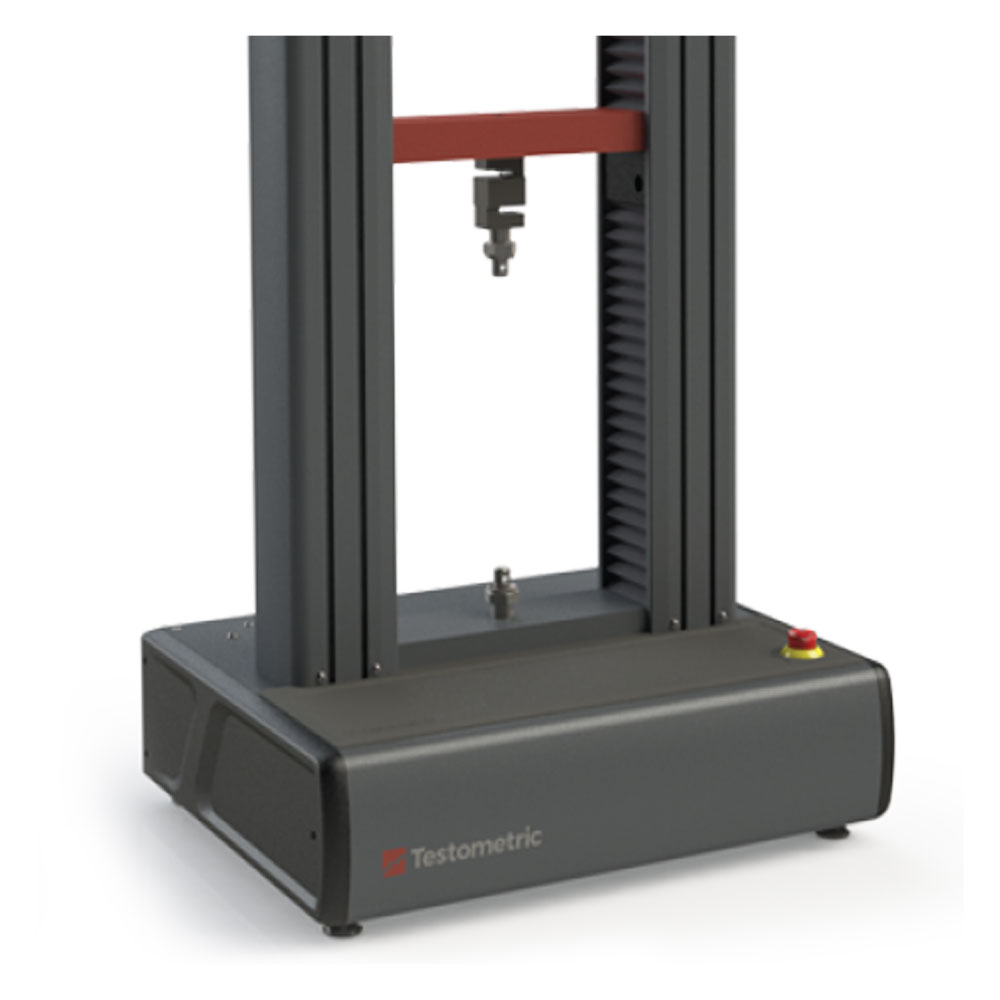

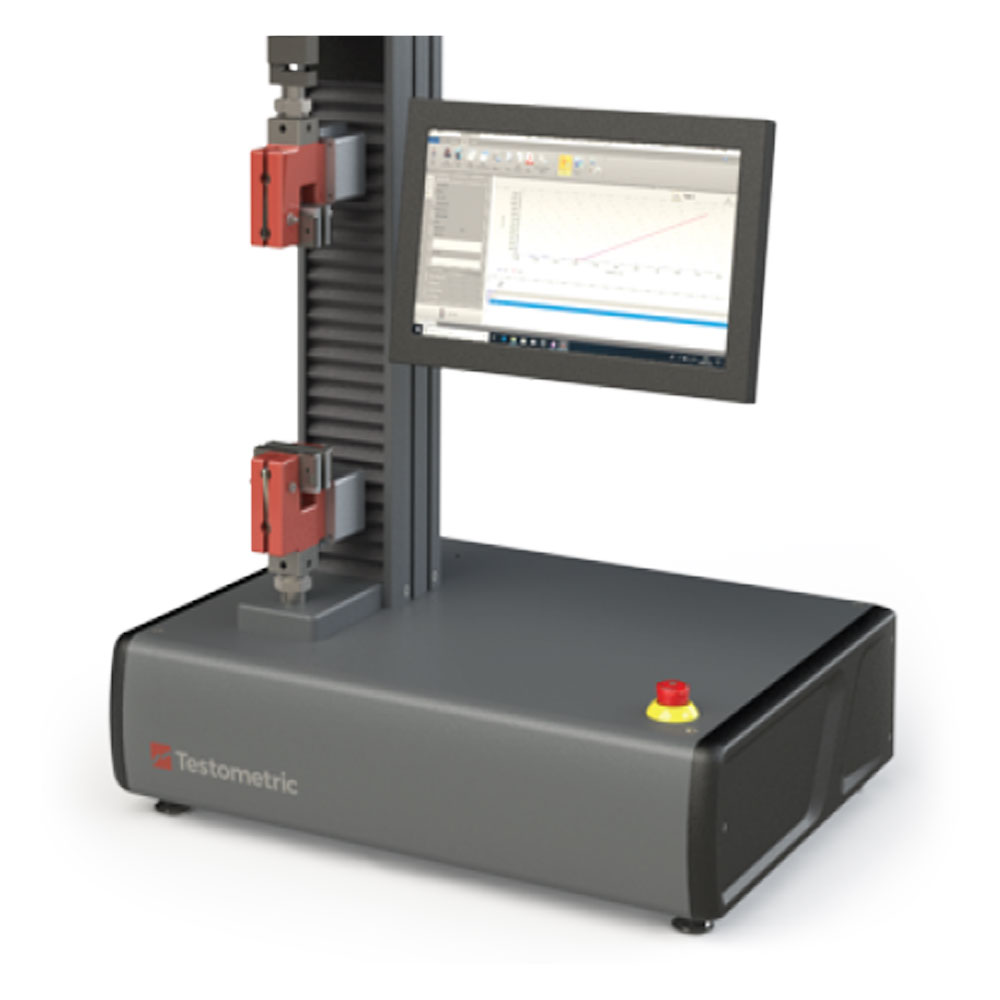

Universal Tensile Strength Tester

Capacity: 300kg & 500kg

Brand: Testometric, Origin: UK

Purpose of the Universal Tensile Strength Tester: Tensile Tester with multi-purpose pneumatic grips for textile Industry applications to evaluate Fabric tensile, Yarn tensile, Seam Slippage, Tear/peel bond, Attachments/Garments test, Zipper test, Button test.

Technical Specification of Universal Tensile Strength Tester

Load Capacity (Tension & Compression): 5000N
Accuracy of Load Cells Class: 0.5 (±0.5%)
Speed Accuracy: ± 0.0005%
Positional Accuracy: ± 0.00125mm.
Maximum Stroke: 1100mm
Total Vertical Stroke: 1100mm
Measuring Principle: Constant Rate of Extension (CRE)
Operating Temperature °C: 0 to +55
Operating Humidity: 90% relative humidity or less
Electrical Supply: Dual input selectable 115 or 230 V, 1 ph 50/60 Hz

Accessories of Universal Tensile Strength Tester

Standard accessories, essential to conduct the tensile, Yarn tensile, Seam Slippage, Tear/peel bond, Attachments/Garments test, Zipper test, Button test, whether those are mentioned in the specification or not.

Test Standards Fibre

ASTM D 1294 Breaking tenacity of wool fibre bundles.
ASTM D 5079 Tensile tests on spun fibres.
ASTM D 2524 Tensile tests on wool fibre bundles/
ASTM D 3106 Residual deformation of elastomeric fibres.
ASTM D 3217 Loop tensile test of spun fibres.
ASTM D 1445 Bundle strength of cotton fibres.
BS 3411 Tensile properties of individual textiles fibres.
BS 4029 Tensile elastic recovery of single fibres and filaments.
BS 5116 Breaking tenacity of flat bundles of cotton fibres.
BS EN 12751 Sampling of fibres for testing.
DIN 53843-2 Loop tensile tests of spun fibre.
EN ISO 5079 Tensile tests on spun fibres.
EN 13895 Tensile tests on monofilament.
ISO 3060 Bundle strength of cotton fibres.

Yarn & Thread

ASTM D 204 Test methods for sewing thread.
ASTM D 434 Resistance to slippage of yarns.
ASTM D 1578 Breaking strength of yarn in skein form.
ASTM D 2256 Tensile properties of yarn, single strand method.
ASTM D 2653 Tensile properties of elastomeric yarn.
ASTM D 3106 Permanent deformation of elastic yarns.
ASTM D 2731 Elastic properties of elastomeric yarn.
ASTM D 4034 Determination of yarn slippage for upholstery.
ASTM D 5344 Extension force of partially orientated yarn.
ASTM D 6720 Recoverability of stretch yarns.
BS 1932-1 Knot strength of yarn.
BS 1932-2 Loop strength of yarn.
BS 4650 Tensile strength of yarns.
BS 4674 Tensile strength of yarns.
BS 6372 Breaking strength of yarn, skein method.
BS EN ISO 2062 Single-end breaking force and elongation.
DIN 53834-2 Tensile tests of yarn in oven dried state.
DIN 53835-2 Tensile loading of elastomeric yarns at constant strain limits.
DIN 53835-3 Tensile loading of yarn between constant strain limits.
DIN 53835-4 Tensile loading of yarns between constant force limits.
DIN 53842-1 Yarn knot tensile test.
DIN 53843-1 Tensile test of yarn loops.
EN ISO 2062 Tensile strength of yarns.
ISO 2060 Tensile strength of yarns.
ISO 2062 Breaking strength of yarns.
ISO 3341 Breaking force of textile glass yarns.
ISO 6939 Tensile test of yarn from packages, skein method.
ISO 9073-3 Tensile strength and elongation of yarn.
P70 Tensile strength of sewing thread

Fabrics

ASTM D 413 Adhesion tests of bonded fabrics.
ASTM D 434 Seam slippage strength of fabrics.
ASTM D 751 Standard test method for coated fabrics.
ASTM D 885 Test methods for tyre cord fabrics.
ASTM D 1117 Standard test methods for nonwoven fabrics.
ASTM D 1682 Tension and elongation of fabrics, strip method.
ASTM D 1683 Fabric failure of seams.
ASTM D 1775 Tension and elongation of wide elastic fabric.
ASTM D 2261 Tearing strength of fabric, tongue procedure.
ASTM D 2724 Test procedures for laminated apparel materials.
ASTM D 2970 Test methods for tyre cord fabric.
ASTM D 3107 Stretch properties of woven fabrics.
ASTM D 3787 Burst strength of knitted fabric.

Fabric

ASTM D 4034 Yarn slippage in upholstery fabrics.
ASTM D 4851 Test methods for laminated fabrics used in roofing materials.
ASTM D 4964 Tension and elongation of elastic fabric.
ASTM D 5034 Breaking strength and elongation of fabric, grab method.
ASTM D 5035 Breaking force and elongation of fabric, strip method.
ASTM D 5278 Narrow elastic static load tests.
ASTM D 5446 Properties of fabrics used in inflatable restraints.
ASTM D 5587 Tearing strength of fabric, trapezoid procedure.
ASTM D 5733 Tearing strength of nonwoven fabrics, trapezoid procedure.
ASTM D 5735 Tearing strength of nonwoven fabrics, tongue procedure.
ASTM D 5822 Seam strength of inflatable restraints.
ASTM D 6614 Stretch properties.
ASTM D 6479 Edge-comb resistance of woven fabrics in inflatable restraints.
ASTM D 6775 Breaking strength and elongation of webbing, tape and braid.
ASTM D 6797 Bursting strength of fabric, ball burst method.
BS 2543 Seam slippage of upholstery fabrics.
BS 2576 Breaking strength and elongation of fabrics, strip method.
BS 3320 Slippage resistance of yarns in woven fabric.
BS 3424-4 Coated fabric breaking strength and elongation.
BS 3424-5 Coated fabric tear strength.
BS 3424-6 Coated fabric burst strength, ball method.

Continue Fabric

BS 3424-7 Coated fabrics coating adhesion.
BS 3424-10 Coated fabrics, determination of surface drag.
BS 4304 Resistance to tear, wing rip method.
BS 4952 Methods of test for elastic fabrics.
BS 5131 Seam Strength.
BS EN ISO 9073-4 Tear resistance of nonwovens.
BS EN ISO 13934-1 Tensile properties of fabrics.
BS EN ISO 13934-2 Tensile properties of fabrics, grab method.
BS EN ISO 13935-1 Seam strength, strip method.
BS EN ISO 13935-2 Seam strength, grab method.
BS EN ISO 13937-2 Tear properties of fabrics, trouser method.
BS EN ISO 13937-3 Tear properties of fabrics, wing rip method.
BS EN ISO 13937-4 Tear properties of fabrics, tongue method.
DIN 53356 Tongue tear tests on coated fabric.
DIN 53835-13 loading between constant strain limits.
DIN 53835-14 Knitted fabrics loading between force limits.
DIN 53859-4 Nonwovens tear, trouser method.
DIN 53859-5 Cloth tear, trapezoidal method.
DIN 53868 Seam slippage resistance.
DIN 53934 Displacement resistance of fabrics.
DIN EN 12332-1 Burst test, ball method.

Fabric cont.

EN ISO 1421: Specifies tensile testing methods for coated textiles.
EN ISO 2411: Defines procedures for measuring the adhesive strength of coatings on fabrics.
EN ISO 4674-1: Describes tear testing methods for coated fabrics.
EN ISO 9073-4: Covers tear resistance testing for nonwoven materials using the trapezoidal method.
EN ISO 13934-1: Outlines fabric tensile tests using the strip method.
EN ISO 13934-2: Provides the grab method for determining fabric tensile strength.
EN ISO 13935-1: Focuses on seam tensile strength tests using the strip method.
EN ISO 13935-2: Specifies seam tensile testing using the grab method.
EN ISO 13936-1: Explains seam opening determination of yarns in fabric with a fixed opening.
EN ISO 13936-2: Covers seam opening testing based on a set force.
EN ISO 13937-2: Defines fabric tear testing using the trouser method.
EN ISO 13937-3: Describes the wing rip method for fabric tear tests.
EN ISO 13937-4: Explains the tongue method for evaluating fabric tear strength.
EN 1875-3: Provides the trapezoidal tear method for coated textiles.
