Description

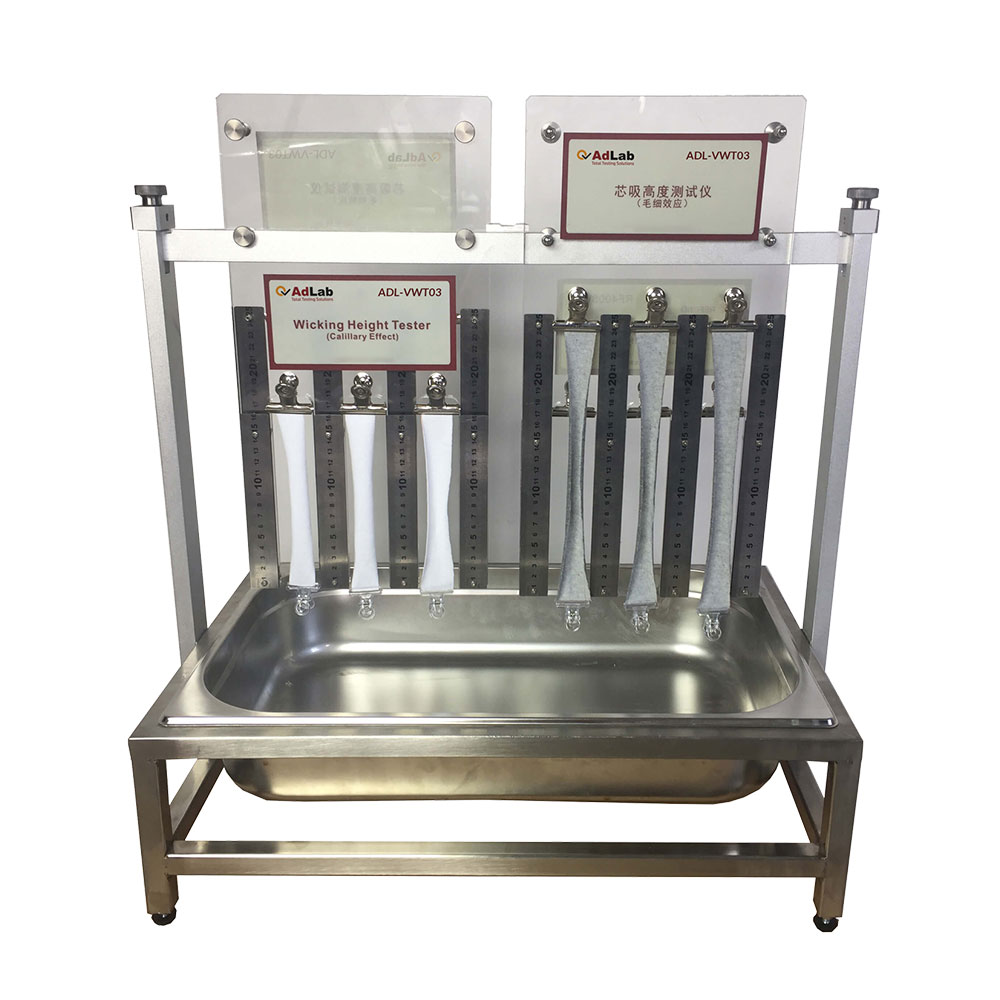

The Vertical Wicking Tester is designed to measure the vertical wicking distance and rate of fabrics accurately. By immersing vertically aligned fabric samples into water, this tester evaluates how quickly and efficiently a material absorbs and transports moisture, providing critical data for textile quality control and research. It is suitable for woven, knitted, and nonwoven fabrics, and supports testing according to standards like AATCC 197 and FZ/T 01071. Compact and reliable, it is an essential instrument for laboratories and manufacturers focused on performance textiles such as sportswear, activewear, and moisture-wicking fabrics.



Test Scope

Woven, Knitted and Nonwoven fabrics

Testing Standard

AATCC197, FZ/T 01071, etc.



Specification

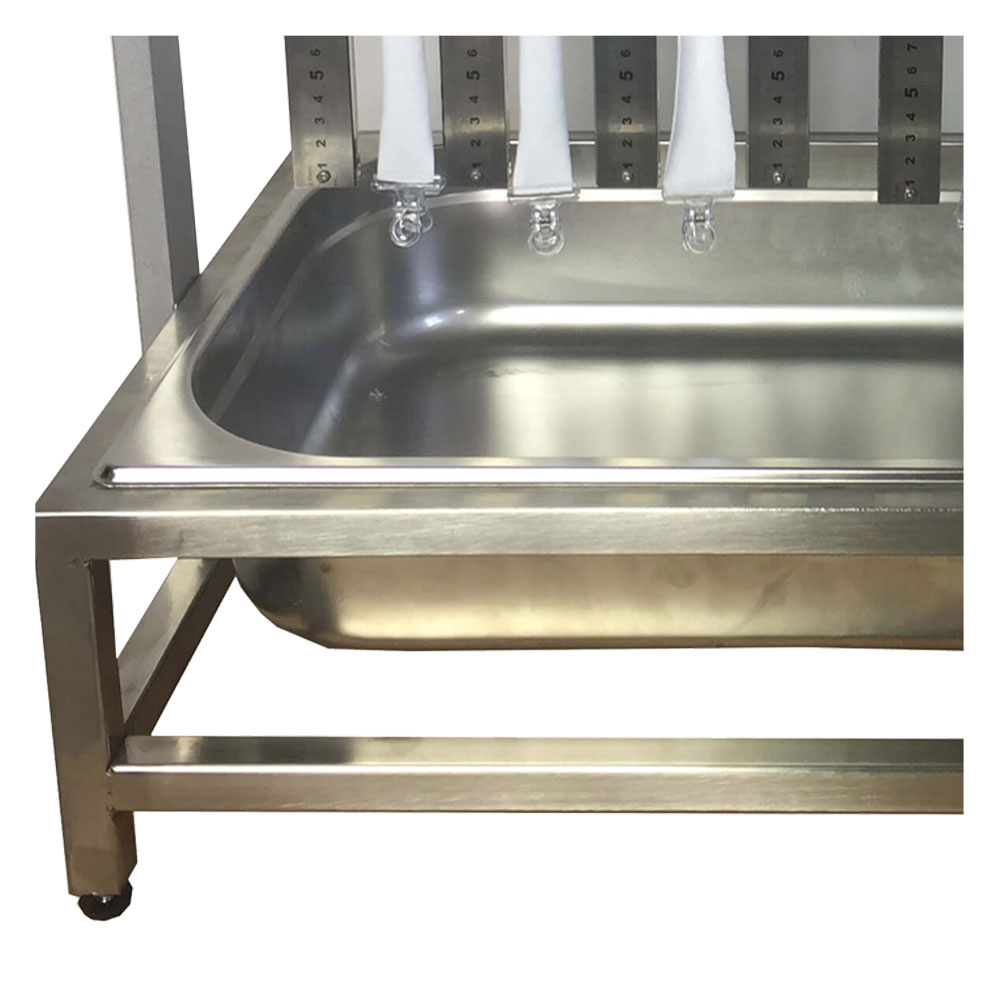

  • Water Container: Min. depth 100mm;
  • 12 pcs specimen clamps, can do FZ/T and AATCC tests simultaneously;
  • 6 pcs 165mm and 6 pcs 250mm stainless steel rulers, resolution is 1mm;
  • 12pcs top specimen clamps for holding the specimens vertically;
  • 12pcs Bottom Tension Clamps ensure the specimens hanging      vertically;
  • Dimension: 560mm (L) x 360mm (W) x 650mm (H)
  • Weight: Approx. 10kg;



Why Choose Vertical Wicking Tester?

The Vertical Wicking Tester provides precise and repeatable measurements, making it ideal for textile labs and manufacturers aiming for high-quality moisture-management fabrics. Equipped with 12 specimen clamps, it can test multiple samples simultaneously under AATCC and FZ/T standards. The tester includes six 165 mm and six 250 mm stainless steel rulers with 1 mm resolution, ensuring accurate wicking distance recording. Top and bottom clamps maintain specimens in vertical alignment, preventing sagging or distortion during testing. The water container has a minimum depth of 100 mm, accommodating various fabric lengths. Compact (560×360×650 mm) and lightweight (10 kg), it offers ease of operation, reliable performance, and consistent results for evaluating woven, knitted, and nonwoven textiles.
