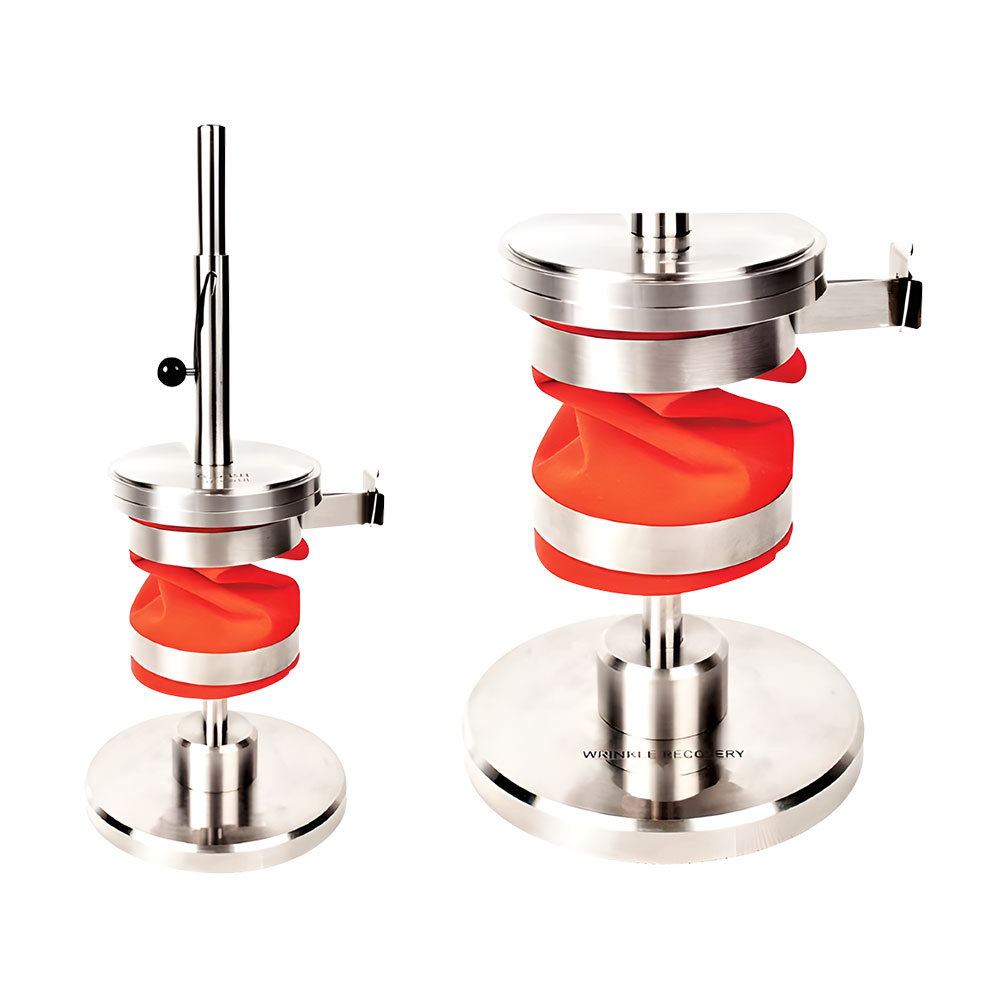

Wrinkle Recovery Tester
Compact wrinkle recovery tester for fabrics, simulates folding under load, grades recovery, compliant with AATCC 128, ISO 9867, and ENKA 3061.
- Tests fabric wrinkle recovery for pure and blended fibers
- Compliant with AATCC 128, ISO 9867, ENKA 3061 standards
- Includes multiple weights and grading plates for precise evaluation
The Wrinkle Recovery Tester evaluates the ability of fabrics to recover after being creased under a specified load for a set time. It is suitable for pure or blended fibers, providing critical data for quality control and textile research. By simulating folding conditions, the tester helps manufacturers and laboratories assess fabric durability, appearance retention, and wrinkle resistance. Compact and reliable, it supports standards like AATCC 128, ISO 9867, and ENKA 3061, making it an essential instrument for fabric testing, R&D, and production monitoring.
Standard
AATCC 128 ISO 9867 ENKA 3061
Main Features

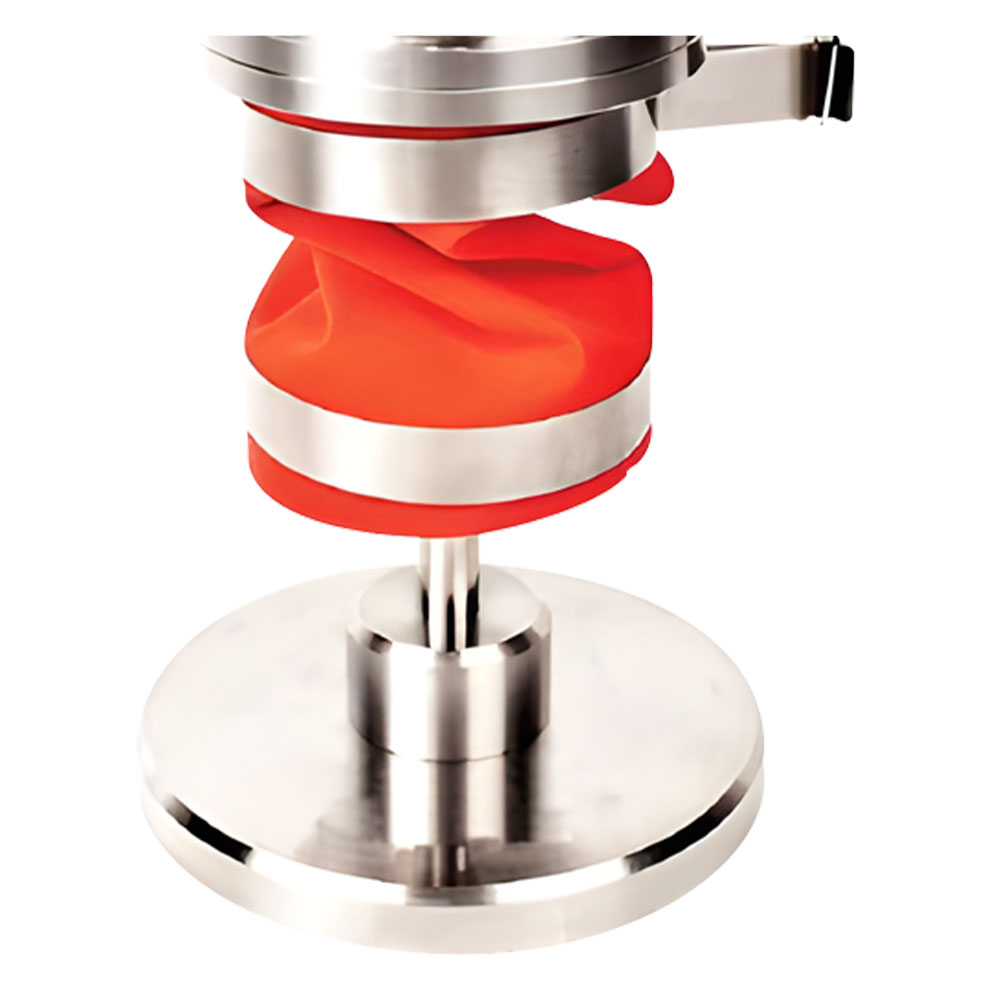

- The base with brackets, the circular steel plate fixed on the base is matched with the movable steel plate at the upper end, and the movable flange is equipped with locking pins;
- 4 standard weights, respectively 2000g, 1000g, 500kg, 200kg;
- Provide a full set of 5 inch x 3 inch plastic plates for easy rating (grade 1 5).
Key Specification
- Sample size – 15cm×28cm (6×11 inches)
- Weight – 2000g, 1000g, 500kg, 200kg, cumulative
- Dimensions – 150×150×330mm (6×6×13 inches) (L×W×H)
- Weight – 9.5kg (21lb)
Why Choose Wrinkle Recovery Tester?
The Wrinkle Recovery Tester is an essential tool for textile laboratories and manufacturers seeking consistent, reliable testing of fabric wrinkle resistance. Its design includes a circular steel plate base with movable steel plate and locking pins, ensuring precise sample positioning. The tester comes with four standard weights (2000g, 1000g, 500g, 200g) to simulate different load conditions, and a set of 5×3 inch plastic plates for easy visual grading. It accommodates a sample size of 15×28 cm, providing flexibility for various fabric types. Lightweight (9.5 kg) and compact (150×150×330 mm), it is easy to operate while delivering reproducible results. Compliant with AATCC 128, ISO 9867, and ENKA 3061, it ensures standard-conforming wrinkle recovery testing.
