Cabinet Xenon Test Chamber

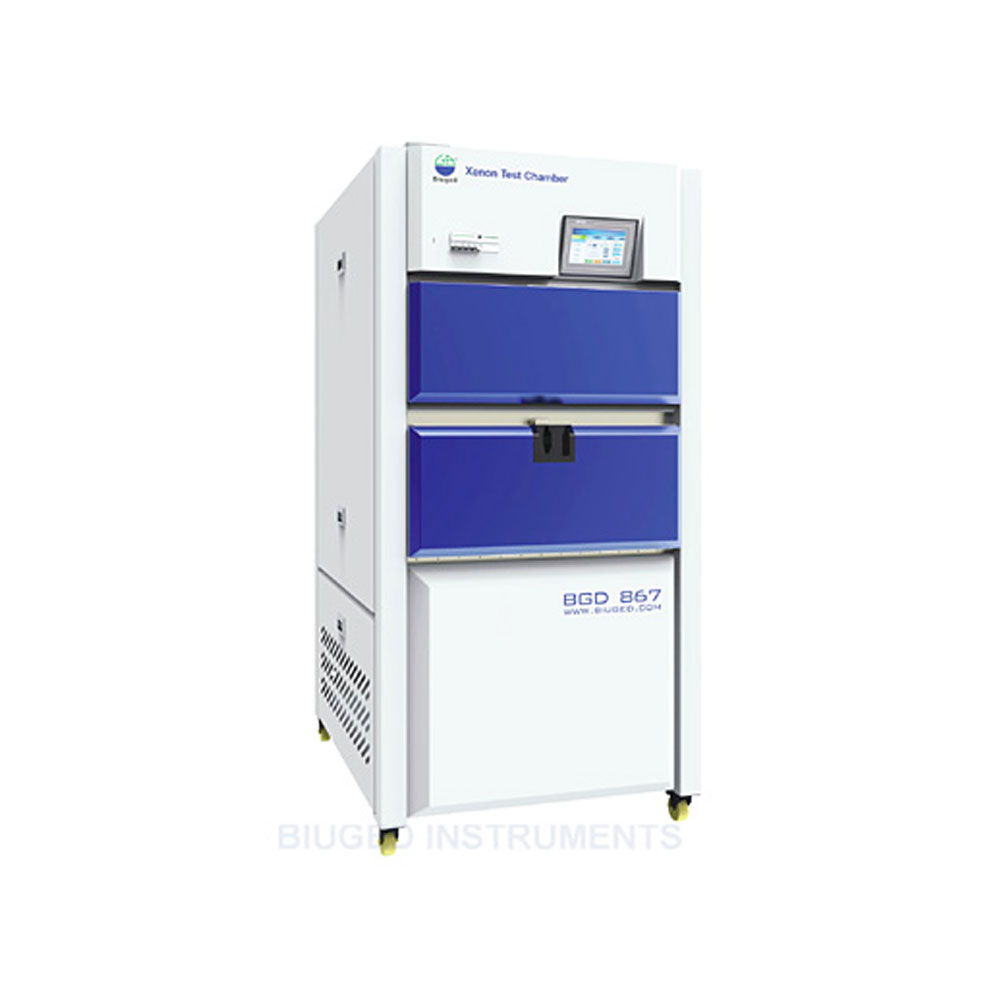

Cabinet Xenon Test Chamber – BGD 867

The BGD 867 is a versatile Cabinet Xenon Test Chamber designed for advanced material testing. Equipped with three xenon lamps imported from the USA, it allows users to select from daylight, window glass, or extended UV filters, ensuring compliance with international testing standards. With a capacity to hold 25 samples, the chamber integrates both spray and humidity control functions, making it suitable for a wide range of applications.

Operators can easily set test parameters such as irradiance, test time, and black panel temperature (BPT) through the intuitive touch screen interface. Real-time monitoring keeps users informed of the running status, while a USB interface enables quick data export to a computer for further analysis.

Features

• High-performance xenon lamps – Three imported xenon lamps provide stable irradiance energy, meeting diverse test requirements.
• Automatic humidity control – The chamber maintains precise relative humidity levels for consistent test conditions.
• Programmable test procedures – Up to six customized programs can be stored, each with a maximum of ten data segments.
• Energy-based testing – Users can define cumulative irradiance energy to determine test completion.
• Spray functionality – Front spray with adjustable spray and interval times enhances testing flexibility.
• Closed-loop irradiance control – Automatically compensates for lamp aging or intensity fluctuations.
• Easy calibration – Operators can adjust irradiance and black panel temperature without external assistance.
• Advanced protection system – Includes alarms for over-temperature, humidity errors, low water levels, and air pressure fluctuations, with automatic shutdown for safety.
• User-friendly interface – Touchscreen controls simplify parameter settings and test monitoring.

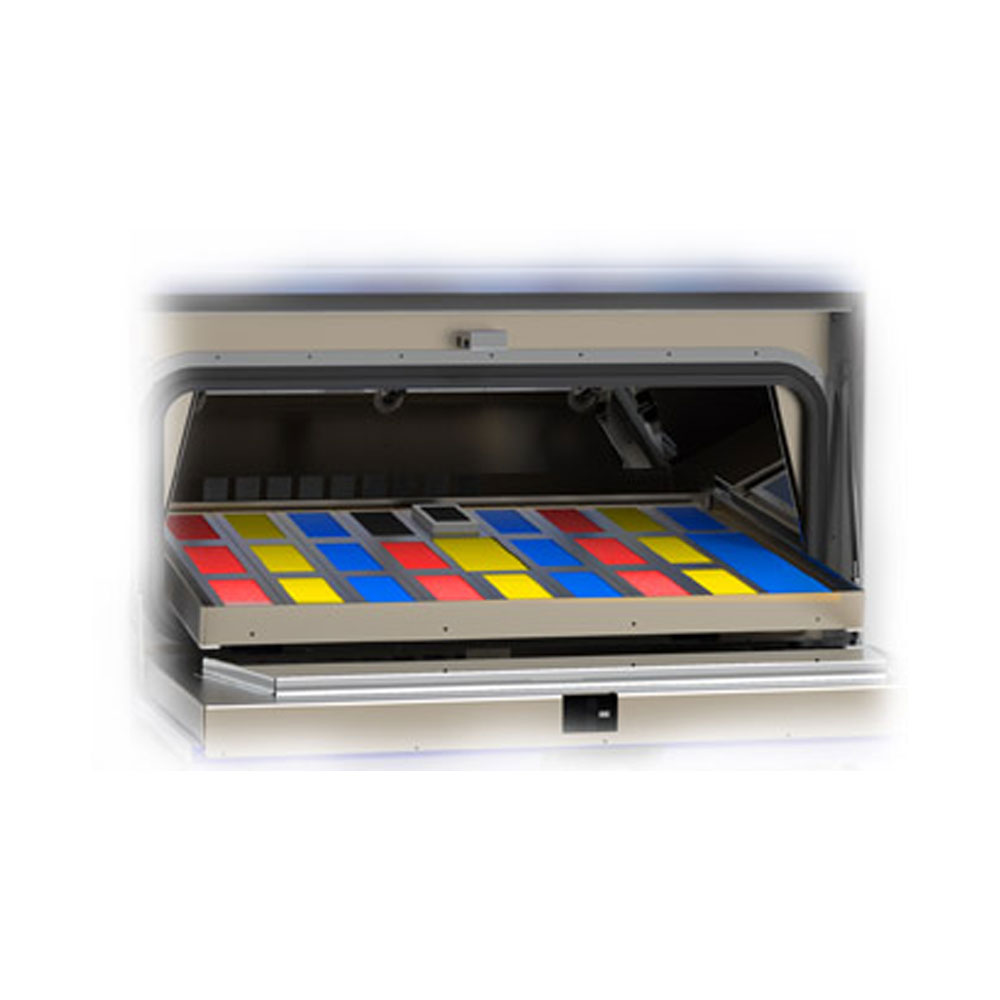

• Efficient specimen handling – Slide-out tray allows quick mounting and evaluation of samples.
• Data management – Real-time data collection with USB export enables unattended operation.

Test Standards

• ISO 12040 《Graphic Technology – Prints and Printing Inks – Assessment of Light Fastness Using Filtered Xenon Arc Light》
• ISO 16474-2 《Paints and varnishes — Methods of exposure to laboratory light sources — Part 2: Xenon-arc lamps》
• ASTM D3451 《Standard Guide for Testing Coating Powders and Powder Coatings》
• ASTM D4303 《 Standard Test Methods for Lightfastness of Pigments Used in Artists’ Paints》
• ASTM D6577 《Standard Guide for Testing Industrial Protective Coatings》
• ASTM D6695 《Standard Practice for Xenon-Arc Exposures of Paint and Related Coatings》
• ASTM G151《Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources》
• ASTM G155《Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials》
• ISO 4892-1 《Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance》
• ISO 4892-2《Plastics – Methods of Exposure to Laboratory Light Sources – Part 2: Xenon-arc lamps》
• SAE J2412 《Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Xenon-Arc Apparatus》
• SAE J2527 《Accelerated Exposure of Automotive Exterior Materials Using a Controlled Irradiance Xenon-Arc Apparatus》

Main Technical Parameters

• Xenon Lamp: Three 1.8 kW xenon lamps (imported from the USA)
• Filters: Daylight, extended UV, or window glass filter
• Lamp Lifetime: Approx. 1,500 hours
• Exposure Area: 2,800 cm² (holds 25 samples, 150×70 mm each)
• Irradiance Range:
  • 30–90 W/m² (@300–400 nm)
  • 0.3–0.75 W/m² (@340 nm)
  • 0.5–1.35 W/m² (@420 nm)
  • 310–780 W/m² (@300–800 nm)
• Controlling Points: 340 nm, 420 nm, or 300–400 nm
• Black Panel Temperature: RT–90 °C
• Relative Humidity: 10–75% (Light) / 10–95% (Dark)
• Chamber Interior: Aluminum profiles
• Chamber Exterior: Powder coating
• Dimensions (W×D×H): 950×1200×2000 mm
• Net Weight: 385 kg
• Power Supply: Three-phase AC 380V, 50/60 Hz, Max. 32A, Rated Power 7.5 kW
• Compressed Air Requirement: Clean, oil-free air at 0.5 MPa; Max. 60 L/min; Avg. 10–30 L/min (depending on test standard)

Why Choose Cabinet Xenon Test Chamber

The BGD 867 Cabinet Xenon Test Chamber is engineered for precision, reliability, and compliance with global testing standards. Its three imported xenon lamps deliver stable and accurate irradiance, ensuring consistent test results across diverse applications. With programmable test procedures, humidity control, and front spray functionality, it provides unmatched flexibility for simulating real-world weathering conditions. Operators benefit from a user-friendly touchscreen interface, easy calibration, and real-time data monitoring with USB export. Built with robust materials and an advanced safety system, the chamber ensures durability and reliable operation over time. Whether for paints, coatings, plastics, automotive, or printing industries, the BGD 867 offers a complete solution for accelerated weathering, lightfastness, and durability testing.
