AElectronic Tension Meters DT Series

Electronic tension meters providing detailed process data and analysis. Two models available:

DTS (basic unit) and DTX (with memory and output)

Standard features Models DTS and DTX:

Everything in operator’s view:
- the guide rollers
- the measured material
- the readings
Filament guide and roller shifting mechanism ensure easy acquisition of the running material
Ball-bearing mounted, V-grooved guide rollers
Rugged aluminum housing
LiPo Accu (approx. 40 h continuous use) with AC adapter
CE approved (tested for electromagnetic compatibility)
Inspection Certificate with calibration report optionally available

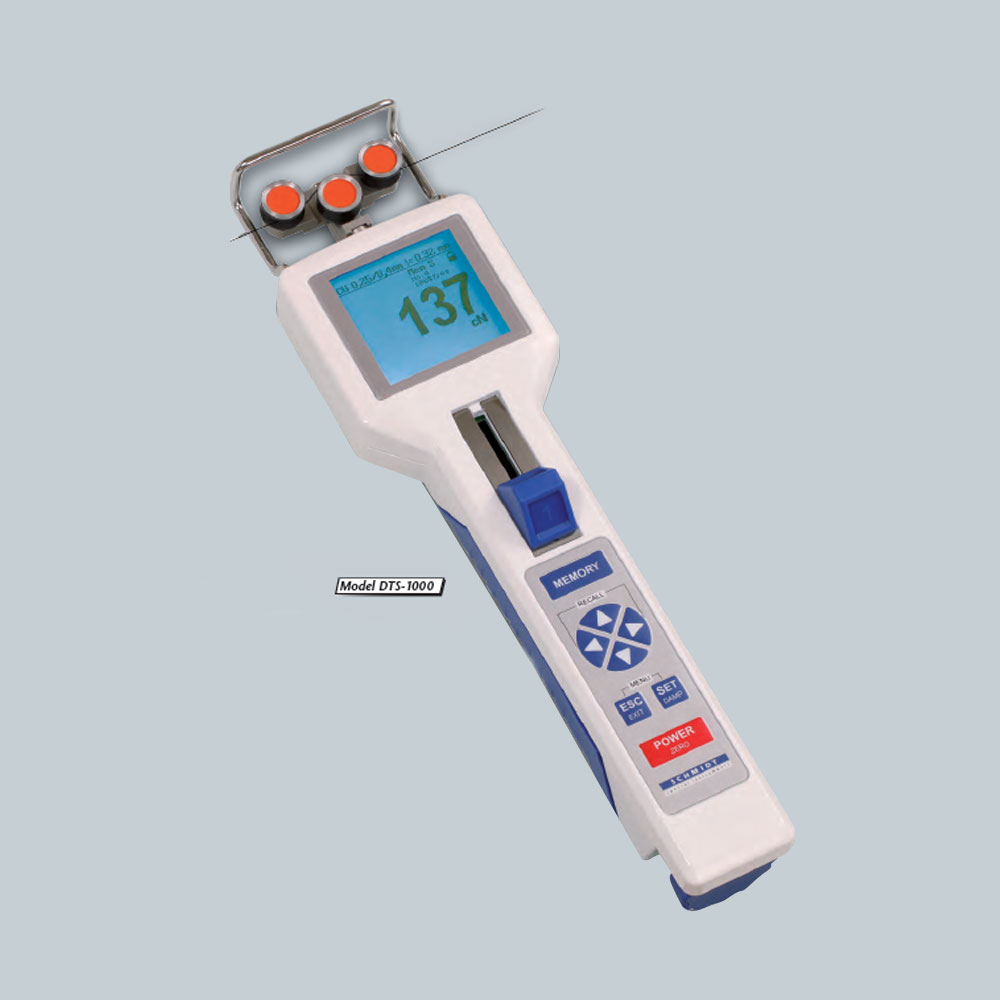

Model DTS

Available Models

Model	Tension Ranges cN	Measuring Head Width*mm	SCHMIDT Calibration Material** Polyamid (PA)-Monofil	Textile Industry Applications	Wire Industry Applications e.g. soft-annealed copper wire
DTS-200	1 – 200.0	66	0.12 mm Ø	max. 200 tex	max. 0.15 mm Ø
DTS-500	1 – 500.0	66	0.12 + 0.20 mm Ø	max. 500 tex	0.05 – 0.25 mm Ø
DTS-1000	10 – 1000	66	0.20 + 0.40 mm Ø	max. 1000 tex	0.10 – 0.40 mm Ø
DTS-2000	20 – 2000	66	0.40 + 0.70 mm Ø	max. 2000 tex	0.30 – 0.60 mm Ø
DTS-2500	25 – 2500	116	0.40 + 0.70 mm Ø	max. 2500 tex	0.30 – 0.70 mm Ø
DTS-4000	40 – 4000	66	0.50 + 0.90 mm Ø	max. 4000 tex	0.35 – 0.90 mm Ø
DTS-5000	50 – 5000	116	0.60 + 1.20 mm Ø	max. 5000 tex	0.40 – 1.00 mm Ø
DTS-10 K	0.1 – 10.00 daN	116	0.80 + 1.40 mm Ø	max. 10000 tex	0.70 – 1.40 mm Ø
DTS-20 K	0.2 – 20.00 daN	166	1.20 + 1.80 mm Ø	max. 20000 tex	1.00 – 2.00 mm Ø
DTS-30 K	0.3 – 30.00 daN	216	1.40 + 2.20 mm Ø	max. 30000 tex	1.20 – 2.50 mm Ø
DTS-50 K	0.5 – 50.00 daN	216	Steelrope 1.5 mm Ø	max. 50000 tex	1.40 – 3.00 mm Ø
DTS-60 K-V1	0.6 – 60.00 daN	280	Steelrope 2.0 mm Ø	max. 60000 tex	1.80 – 3.50 mm Ø

Specifications

Calibration: According to SCHMIDT factory procedure
Accuracy: 5 % to 100 % of range:
± 0.5 % FS* and ± 1 digit or better
Remaining range and other calibration material: ± 3 % FS* and ± 1 digit or better
Memory for material 1 for SCHMIDT calibration plus
curves: 4 for customized calibrations
Measuring units: Force: cN, daN, g, kg, N or lb
Thickness: mm or inch
Overrange: Approx. 10 % FS*, without accuracy guarantee
Overload protection: 100 % FS*
Measuring principle: Strain gauge bridge
Measuring roller deflection: 0.2 mm max.
Signal processing: Digital, 16bit A / D converter
Measuring frequency: Max. 1 kHz (1000 measurings / sec)
Display: Graphic LCD
3 different displays: Numeric, Numeric + bargraph, Numeric + X-Y-diagram (time tension)
Display update rate: 2 times per second
Memory: MIN, MAX, PEAKS, AVG, STD and LAST
Thickness compensation: Max. 2.5 mm (not for all models)
Temperature range: 10 – 45 ºC
Air humidity: 85 % RH, max.
Power supply: LiPo accumulator (about 40 hours of continuous use)
Housing material: Die-cast aluminium
Housing dimensions: 265 x 78.5 x 46 mm (LxWxH)
Weight, net (gross): Up to Model -50 K 875 g (1550 g)
DTS-60 K-V1 1040 g (2700 g)

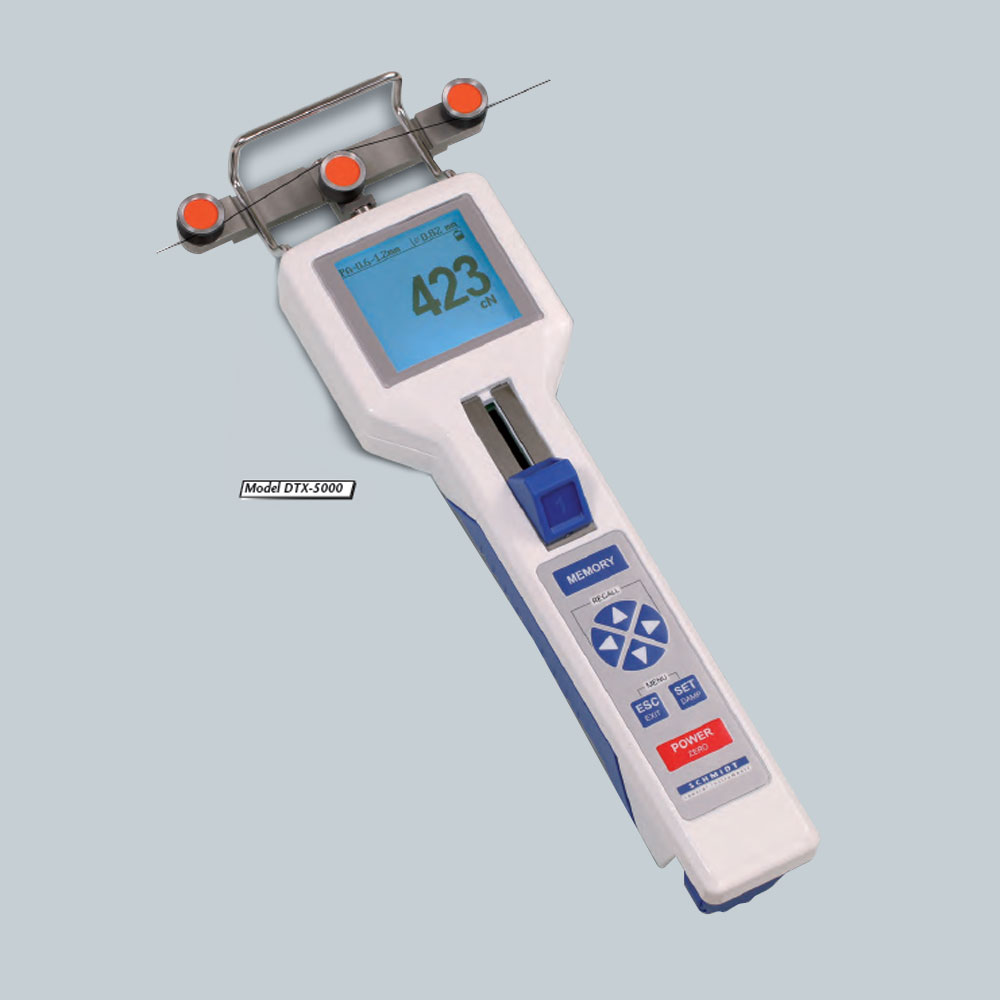

Model DTX

Model	Tension Ranges cN	Measuring Head Width* mm	SCHMIDT Calibration Material** Position Tex	Textile Industry Applications	SCHMIDT Calibration Material*** Position Wire	Wire Industry Applications e.g. soft-annealed copper wire
DTX-200	1 – 200.0	66	0.12 mm Ø	max. 200 tex	0.10 mm Ø	max. 0.15 mm Ø
DTX-500	1 – 500.0	66	0.12 + 0.20 mm Ø	max. 500 tex	0.16 + 0.25 mm Ø	0.05 – 0.25 mm Ø
DTX-1000	10 – 1000	66	0.20 + 0.40 mm Ø	max. 1000 tex	0.25 + 0.40 mm Ø	0.10 – 0.40 mm Ø
DTX-2000	20 – 2000	66	0.40 + 0.70 mm Ø	max. 2000 tex	0.40 + 0.60 mm Ø	0.30 – 0.60 mm Ø
DTX-2500	25 – 2500	116	0.40 + 0.70 mm Ø	max. 2500 tex	0.40 + 0.60 mm Ø	0.30 – 0.70 mm Ø
DTX-4000	40 – 4000	66	0.50 + 0.80 mm Ø	max. 4000 tex	0.50 + 0.80 mm Ø	0.35 – 0.90 mm Ø
DTX-5000	50 – 5000	116	0.60 + 1.20 mm Ø	max. 5000 tex	0.60 + 1.00 mm Ø	0.40 – 1.00 mm Ø
DTX-10 K	0.1 – 10.00 daN	116	0.80 + 1.40 mm Ø	max. 10000 tex	0.80 + 1.20 mm Ø	0.70 – 1.40 mm Ø
DTX-20 K	0.2 – 20.00 daN	166	1.20 + 1.80 mm Ø	max. 20000 tex	Steel rope 1.5 mm Ø	1.00 – 2.00 mm Ø
Steel rope 2.0 mm Ø
DTX-30 K	0.3 – 30.00 daN	216	1.40 + 2.00 mm Ø	max. 30000 tex	Steel rope 1.5 mm Ø	1.20 – 2.50 mm Ø
Steel rope 2.5 mm Ø
DTX-50 K	0.5 – 50.00 daN	216	Steel rope 1.5 mm Ø	max. 50000 tex	Steel rope 2.0 mm Ø	1.40 – 3.00 mm Ø
DTX-60 K-V1	0.6 – 60.00 daN	280	Steel rope 2.0 mm Ø	max. 60000 tex	Steel rope 2.5 mm Ø	1.80 – 3.50 mm Ø

Specification

Output signal:	USB
Memory:	60.000 values at 255 measuring periods
Memory for material	2 for SCHMIDT calibration plus
curves:	9 for customized calibrations
Memory modes:	5 memory modes with statistical
Digimatic:	evaluation

DTSB, DTXB Models

Available Model

Model	Tension Ranges* cN	Measuring Head Width** mm	Roller Widths mm
DTSB-500	5.0 – 500.0	55	7, 10, 15, 20
DTSB-1000	50 – 1000	55	7, 10, 15, 20, 30, 41
DTSB-2000	100 – 2000	55	7, 10, 15, 20, 30, 41
DTSB-2500	150 – 2500	117	7, 10, 15, 20, 30, 41
DTSB-4000	200 – 4000	55	7, 10, 15, 20, 30, 41
DTSB-5000	250 – 5000	117	7, 10, 15, 20, 30, 41
DTSB-10 K	0.5 – 10.00 daN	117	7, 10, 15, 20, 30
DTSB-20 K	1.0 – 20.00 daN	167	7, 10, 15, 20, 30
DTSB-30 K	1.5 – 30.00 daN	217	7, 10, 15
DTSB-50 K	2.5 – 50.00 daN	217	7, 10

DTXB-500	5.0 – 500.0	55	7, 10, 15, 20
DTXB-1000	50 – 1000	55	7, 10, 15, 20, 30, 41
DTXB-2000	100 – 2000	55	7, 10, 15, 20, 30, 41
DTXB-2500	150 – 2500	117	7, 10, 15, 20, 30, 41
DTXB-4000	200 – 4000	55	7, 10, 15, 20, 30, 41
DTXB-5000	250 – 5000	117	7, 10, 15, 20, 30, 41
DTXB-10 K	0.5 – 10.00 daN	117	7, 10, 15, 20, 30
DTXB-20 K	1.0 – 20.00 daN	167	7, 10, 15, 20, 30
DTXB-30 K	1.5 – 30.00 daN	217	7, 10, 15
DTXB-50 K	2.5 – 50.00 daN	217	7, 10

Model DTSL, DTXL

Available Model

Model	Tension Ranges cN	Measuring Head Width* mm	SCHMIDT Calibration Material
DTSL-2500	150 – 2500	185	with convenient material or each roller design or customer supplied material
DTSL-5000	250 – 5000	185
DTSL-10 K	1.00 – 10.00 daN	235
DTSL-20 K	2.00 – 20.00 daN	235
DTSL-50 K-R4	5.00 – 50.00 daN	226	with convenient or customer supplied material
DTSL-50 K-R5	5.00 – 50.00 daN	226
DTSL-60 K-R4	6.00 – 60.00 daN	276
DTSL-60 K-R5	6.00 – 60.00 daN	276
DTXL-2500	150 – 2500	185	with convenient material for each roller design or customer supplied material
DTXL-5000	250 – 5000	185
DTXL-10 K	1.00 – 10.00 daN	235
DTXL-20 K	2.00 – 20.00 daN	235
DTXL-50 K-R4	5.00 – 50.00 daN	226	with convenient or customer supplied material
DTXL-50 K-R5	5.00 – 50.00 daN	226
DTXL-60 K-R4	6.00 – 60.00 daN	276
DTXL-60 K-R5	6.00 – 60.00 daN	276

Model DTSF, DTXF

Available Model

Model	Model	Tension Range cN	Measuring Head Width* mm	SCHMIDT Calibration Material
DTSF-200	DTXF-200	1.0 – 200.0	140	PA: 0.12 mm Ø
DTSF-500	DTXF-500	1.0 – 500.0	140	PA: 0.20 mm Ø
DTSF-1000	DTXF-1000	10 – 1000	140	PA: 0.30 mm Ø
DTSF-2000	DTXF-2000	20 – 2000	140	PA: 0.50 mm Ø
DTSE-200	DTXE-200	1.0 – 200	36	PA: 0.12 mm Ø
DTSE-500	DTXE-500	1.0 – 500	36	PA: 0.20 mm Ø
DTSE-1000	DTXE-1000	10 – 1000	36	PA: 0.30 mm Ø
DTSE-2000	DTXE-2000	20 – 2000	36	PA: 0.50 mm Ø
