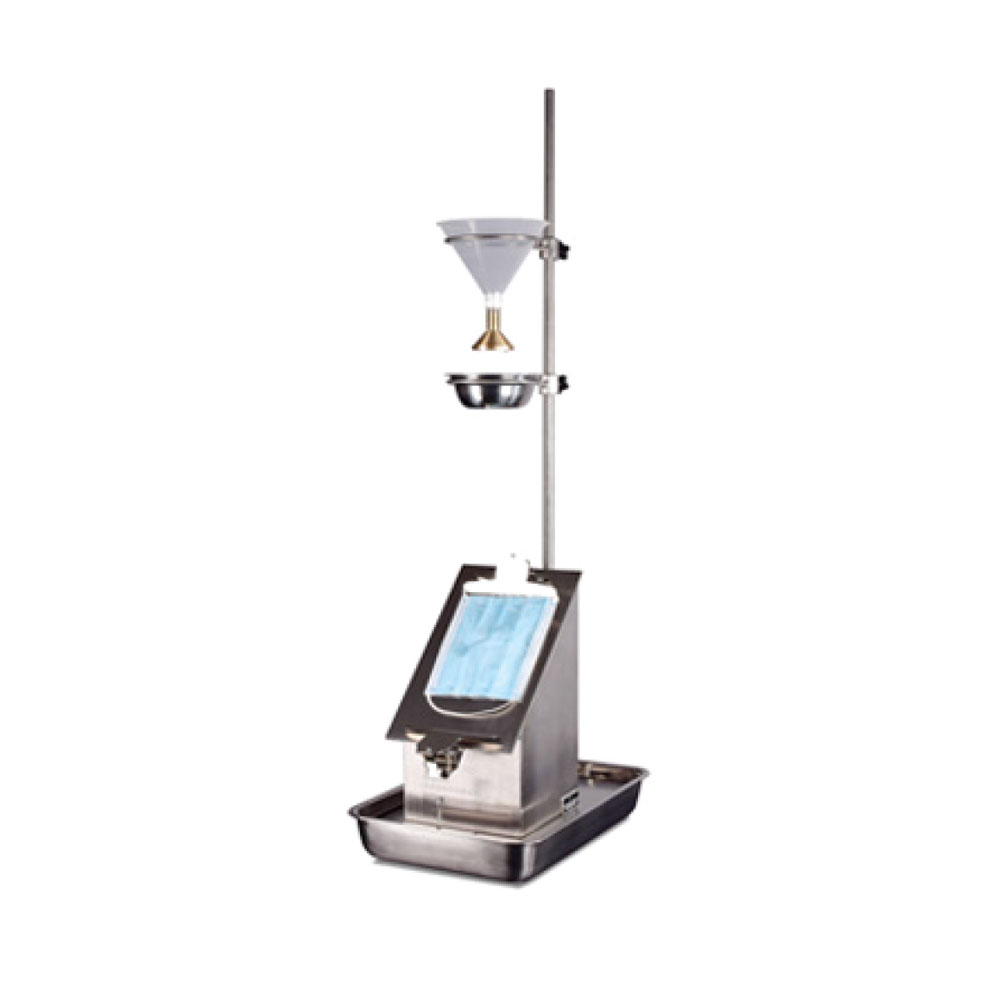

Impact Penetration Tester

The Impact Penetration Tester evaluates a fabric’s resistance to water penetration under low-impact conditions and helps predict its rainproof performance.

During testing, the operator sprays water from a height of (610 ± 10) mm onto the fabric surface held under controlled tension. An absorbent paper with a known weight sits behind the fabric to collect any penetrating water. After spraying, the operator reweighs the paper to determine how much water passed through.

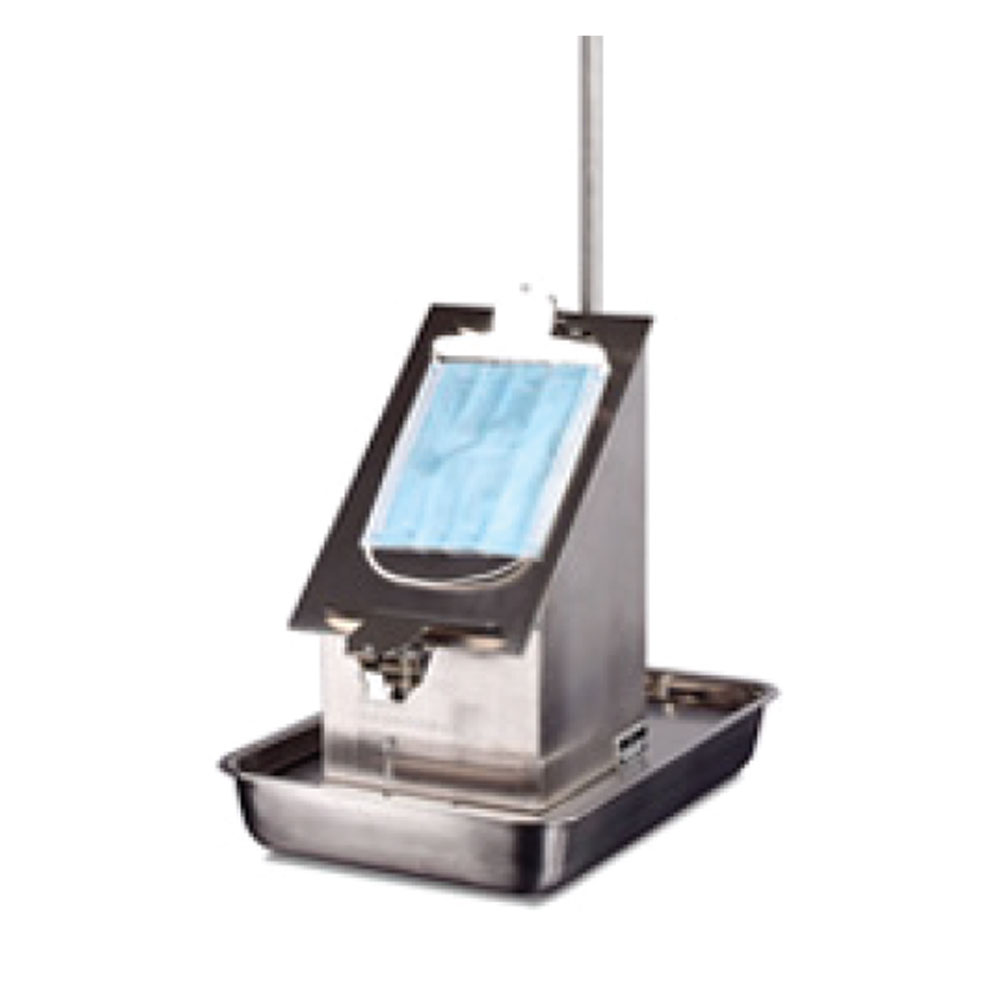

To prepare the sample, the operator clamps one end to a steel plate using a metal spring clip measuring (152 ± 10) mm in length and weighing (0.45 ± 0.05) kg. The other end is fixed securely to keep the sample flat throughout the test. A white absorbent paper sheet of (152 ± 10) mm × (229 ± 10) mm, accurate to 0.1 g, is placed between the fabric and the test bench.

Next, the operator pours (500 ± 10) mL of water into the tester’s funnel to begin spraying. To ensure accuracy, avoid creating a vortex during pouring.
After spraying stops—about two seconds later—the operator carefully removes the absorbent paper and weighs it immediately to the nearest 0.1 g to calculate the water penetration value.

Scope of application

waterproof fabrics, coated fabrics, diving suits, medical protective clothing materials, etc.;

Applicable standards

AATCC 42         GB/T 33732     GB/T 24218

YY/T 1632        YY/T 1499        ISO 18695

Specifications

Funnel height 610mm±10mm

The inclination angle of the slippage and drain table is 45°;

The inner diameter of the nozzle is 45.4mm, 25 holes, 0.99mm ± 0.005mm

Why Choose Impact Penetration Tester?

Choose the Impact Penetration Tester for its precision, durability, and compliance with global waterproof fabric testing standards. The tester provides accurate simulation of light rain or splash conditions, making it essential for evaluating water-resistant and coated fabrics. Its funnel height of 610 mm, 25-hole nozzle design, and 45° drainage platform ensure even water distribution and consistent test conditions. Built with durable materials, it guarantees long-term performance with minimal maintenance. The tester delivers quantitative data that helps manufacturers enhance waterproof coatings and protective textile performance. Trusted in the textile, outdoor apparel, and medical industries. This instrument ensures dependable water penetration resistance testing for both product development and quality assurance.
