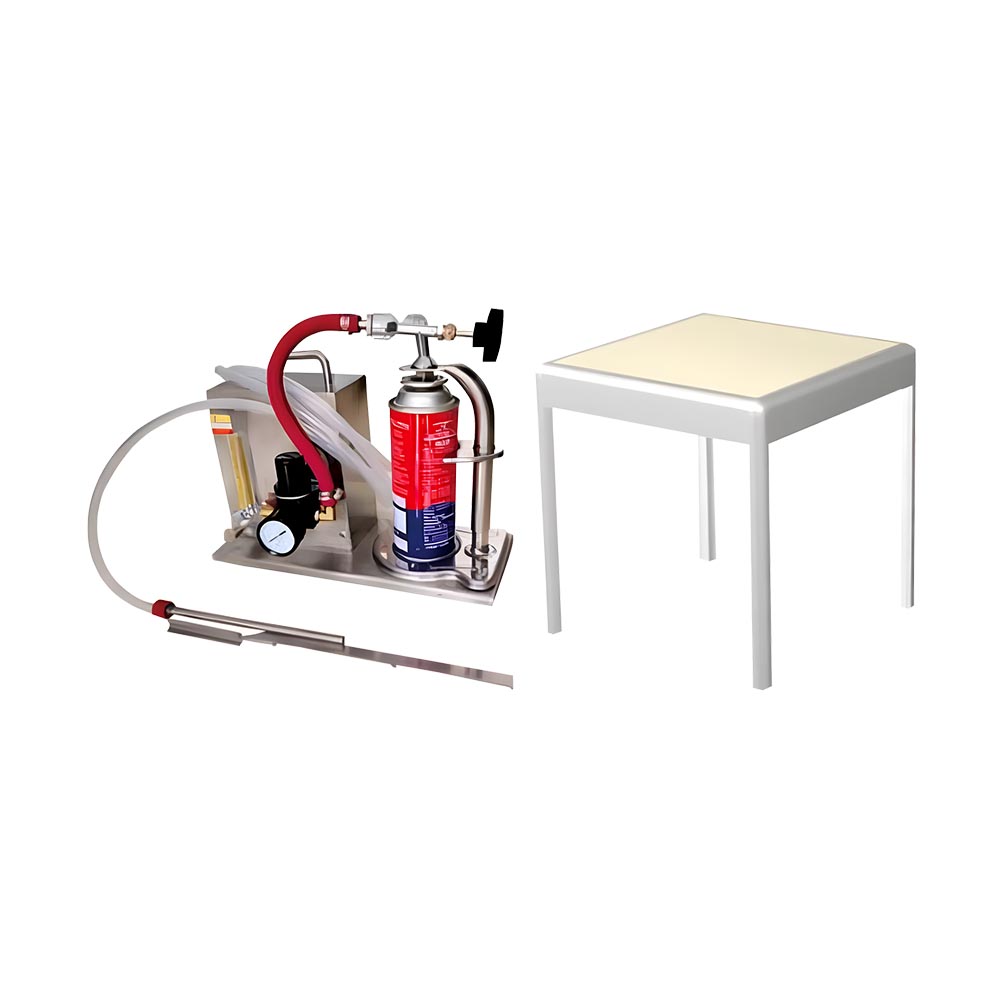

Bedding Flammability Tester
Simulate real ignition to test bedding fabric flammability. Durable stainless-steel tester compliant with GB/T 20390 and ISO 12952 safety standards.
- Simulates ignition using a match-flame equivalent burner
- Complies with GB/T 20390 and ISO 12952 standards
- Durable stainless-steel structure ensures precision and repeatability
The Bedding Flammability Tester is designed to assess the flammability performance of bedding textiles by simulating ignition from a match flame. It helps evaluate the fire safety of mattresses, quilts, pillows, and other bedding materials under realistic ignition conditions. Built with a stainless-steel frame and precision burner system, it ensures consistent test results following GB/T 20390 and ISO 12952-1/2:2010 standards. This instrument provides reliable data for compliance with fire safety regulations, supporting manufacturers in maintaining quality control and consumer safety.
Related Standards
GB/T 20390 ISO12952-1 ISO 12952-2:2010 etc.
Technical Parameter

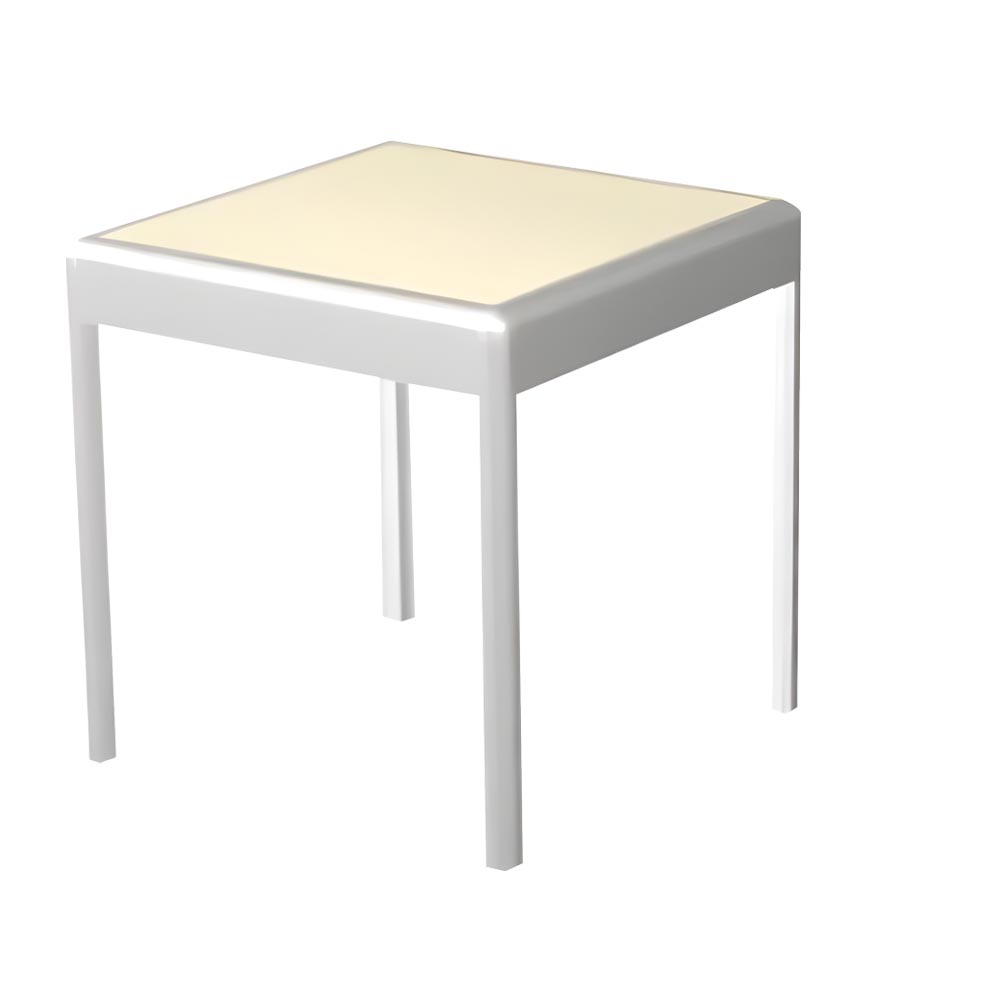

- Test stand: Size: (500×500×750)mm Material: Stainless steel

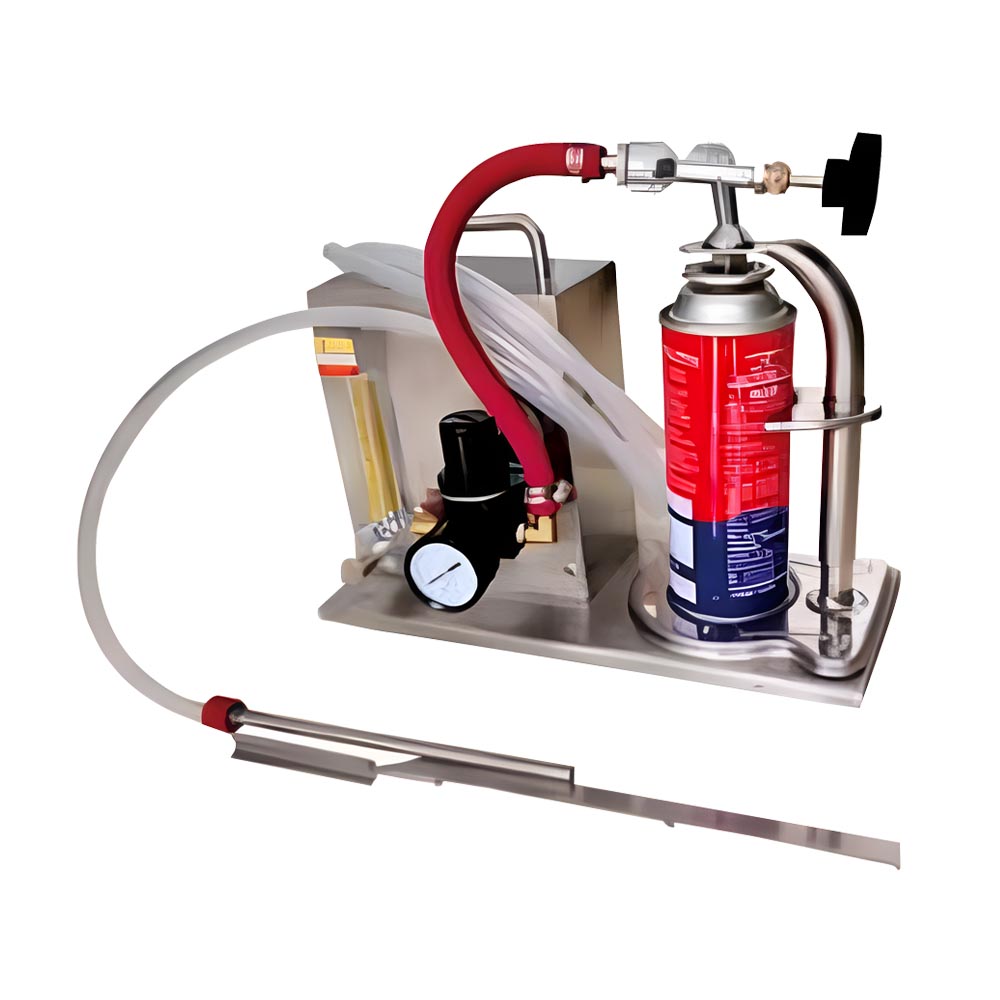

- Ignition source:
- Burner: a stainless steel tube with an outer diameter of (8.0±0.1) mm, an inner
- diameter of (6.5±0.1) mm and a length of (200±5) mm
- Flowmeter: Adjustable gas flow (0.5~60)ml/min±1ml/min
- The burner is connected to the steel cylinder for commercial propane (prepared by the user)
through a hose, and the length of the hose should be 2.5m ~ 3m - Timer (manual stopwatch)
- Dimensions (instrument space): about 1500×800×800mm (L×W×H)
- Weight: 5kg
Standard Accessories
- Main machine – 1pc
- Cylinder holder – 1 pc
Why Choose Bedding Flammability Tester?
Choose the Bedding Flammability Tester for its accuracy, safety, and compliance with global fire testing standards. It uses a match-flame-equivalent ignition source to simulate real-world ignition scenarios, providing dependable data for evaluating bedding material safety. The tester features a durable stainless-steel test stand, precision propane burner, and adjustable gas flow system, ensuring stable and repeatable performance. Its compact design with manual timing control makes it ideal for laboratory or production testing environments. Meeting GB/T 20390 and ISO 12952-1/2:2010 standards, this tester helps bedding manufacturers ensure their products meet fire safety requirements and pass certification tests efficiently. Reliable, user-friendly, and compliant — a perfect solution for modern textile safety testing.
