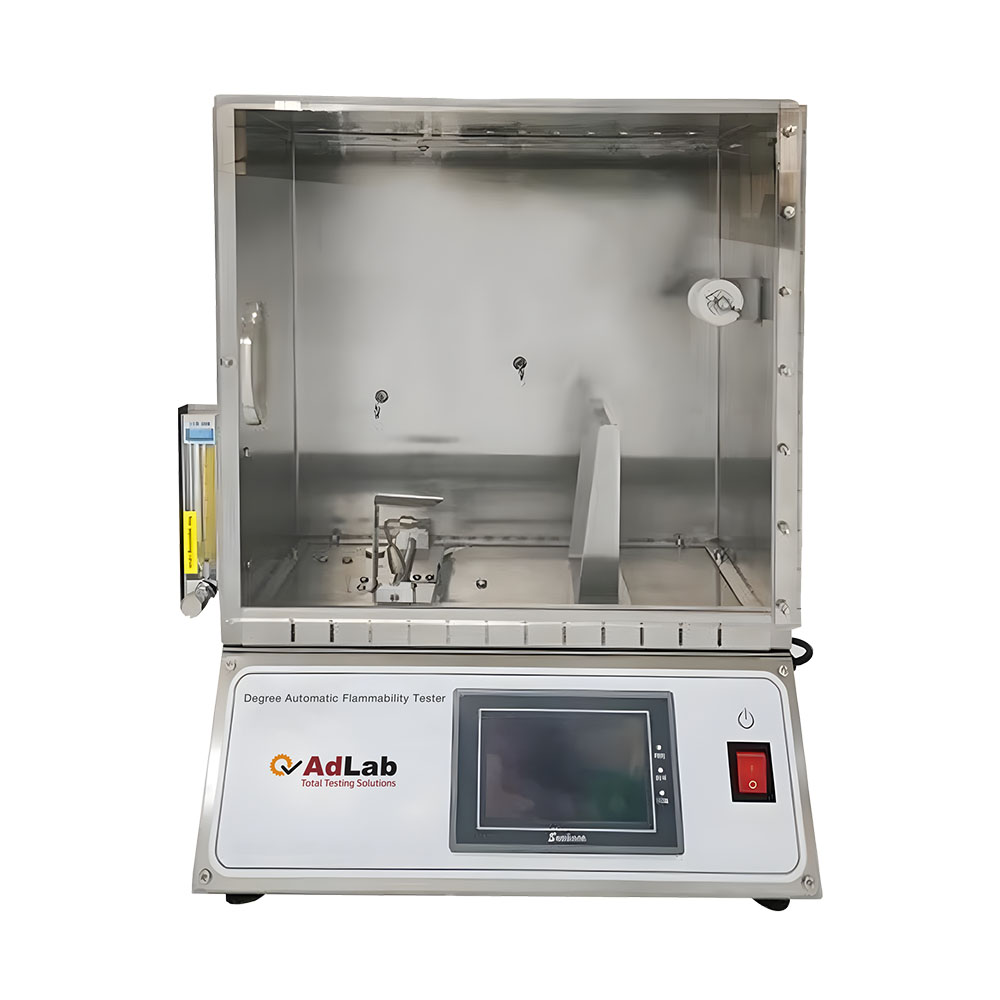

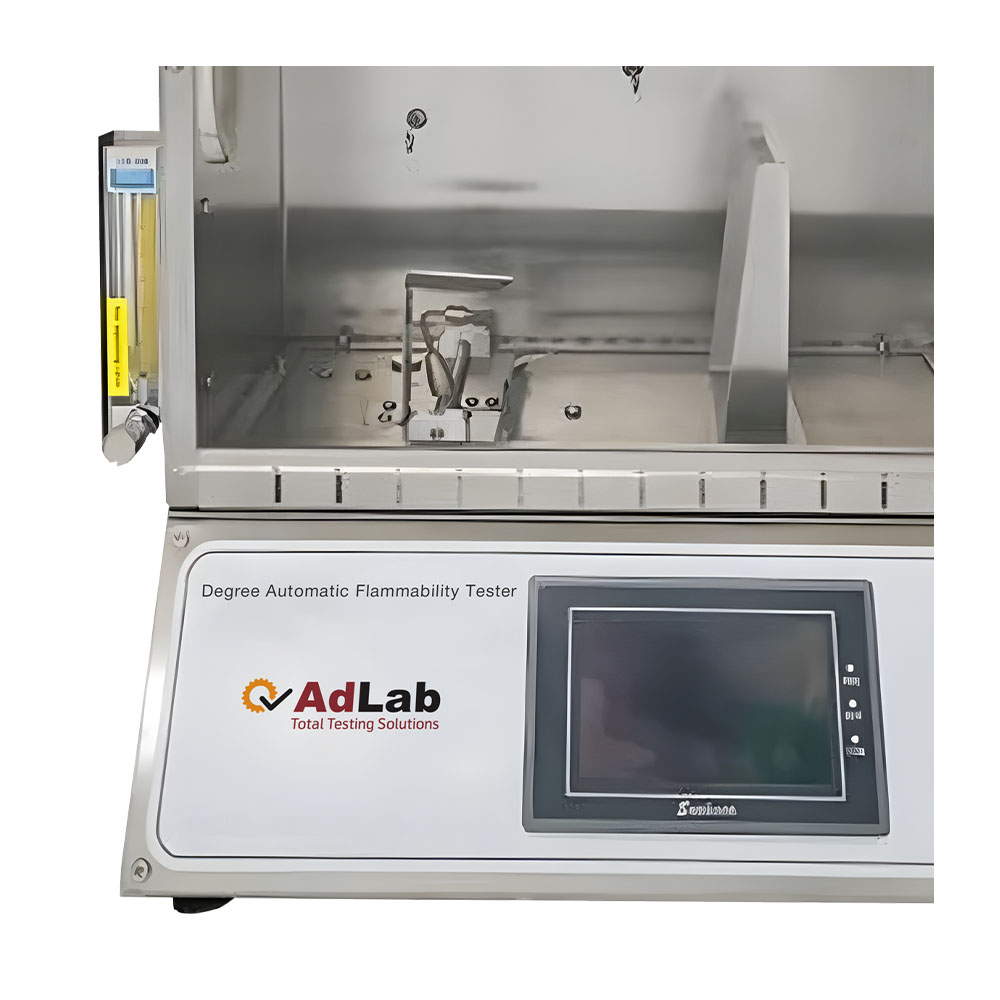

45° Automatic Flammability Tester
Automatic 45° flammability tester for evaluating fabric burning behavior. Meets ASTM, CFR, and GB/T standards with high precision and digital timing control.
- Automatic 45° fabric flammability testing system
- Complies with ASTM D1230, 16 CFR 1610, and GB/T 14644
- Durable platinum steel hammer ensures accuracy and longevity
Application
45° Automatic Flammability Tester, To determine the burning characteristics of textiles under controlled conditions. This test method covers the evaluation of the flammability of textile fabrics as they reach the consumer for or from apparel other than children’s sleepwear or protective clothing.
Compliant Standard
ASTM D 1230, ASTM F963, 16 CFR -1610, CALIF TB 117, CAN/CGSB 4.2 No 27.5, GB/T 14644
Features
- Rotating cycle number can be pre-settable. Also, length of chain is adjustable.
- Stop automatically after getting the preset rotating cycles.
- To ensure the testing accuracy and extend the service life, the nail hammer was made up of platinum steel.
Key Specification
- Model- ADL-FT45
- Time display- 0-99.9S
- Ignition time- 0-99.0S
- Resolving capability- 0.1S
- Specimen holder angle- 45degree
- Distance between nozzle & specimen- 8mm
- Distance between nozzle & label line- 127mm
- Brush load- 150gf
- Size of specimen- 150x 50mm
- Power supply- AC 220V 50/60HZ
- Dimensions- 420 x 260 x 540mm (L x W x H)
- Weight- 30kg
Standard Accessories
- Gas feed device – 1 Pc
- Label cotton thread – 1 pc
- Sample holder – 5 pcs
- Brushing device – 1 pc
- Flame measuring scale – 1 pc
- Hammer – 1 pc
- Power line – 1 pc
Why Choose 45° Automatic Flammability Tester?
Choose the 45° Automatic Flammability Tester for its precision, durability, and compliance with major international flammability standards. Designed for accuracy, the tester offers automatic ignition control, presentable rotation cycles, and adjustable chain length, enabling reliable and repeatable testing. The platinum steel hammer ensures long service life and consistent impact performance, maintaining high accuracy across multiple test runs. The device’s intuitive digital interface displays ignition and burning times with 0.1-second resolution, ensuring precise timing for all fabric types. Suitable for testing a wide range of textiles, this flammability tester is an ideal solution for laboratories, research facilities, and textile manufacturers dedicated to meeting global fire safety compliance requirements.
