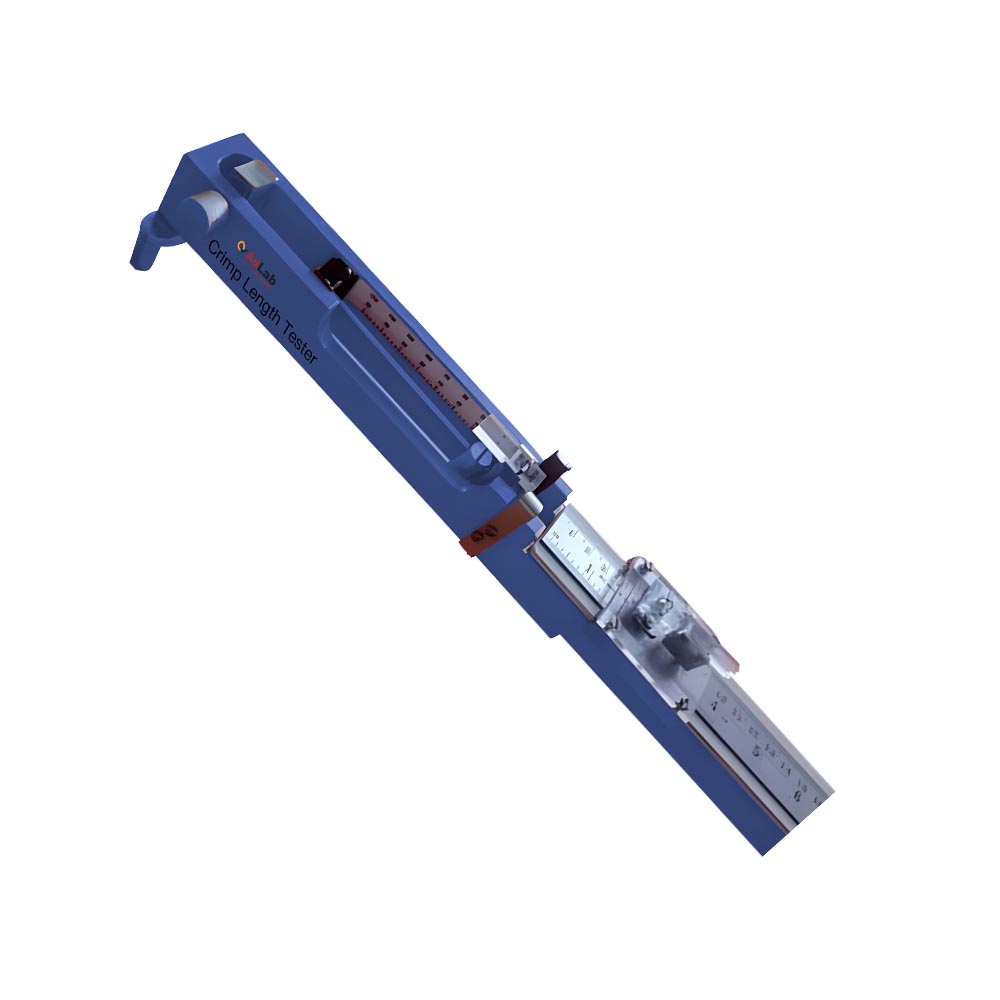

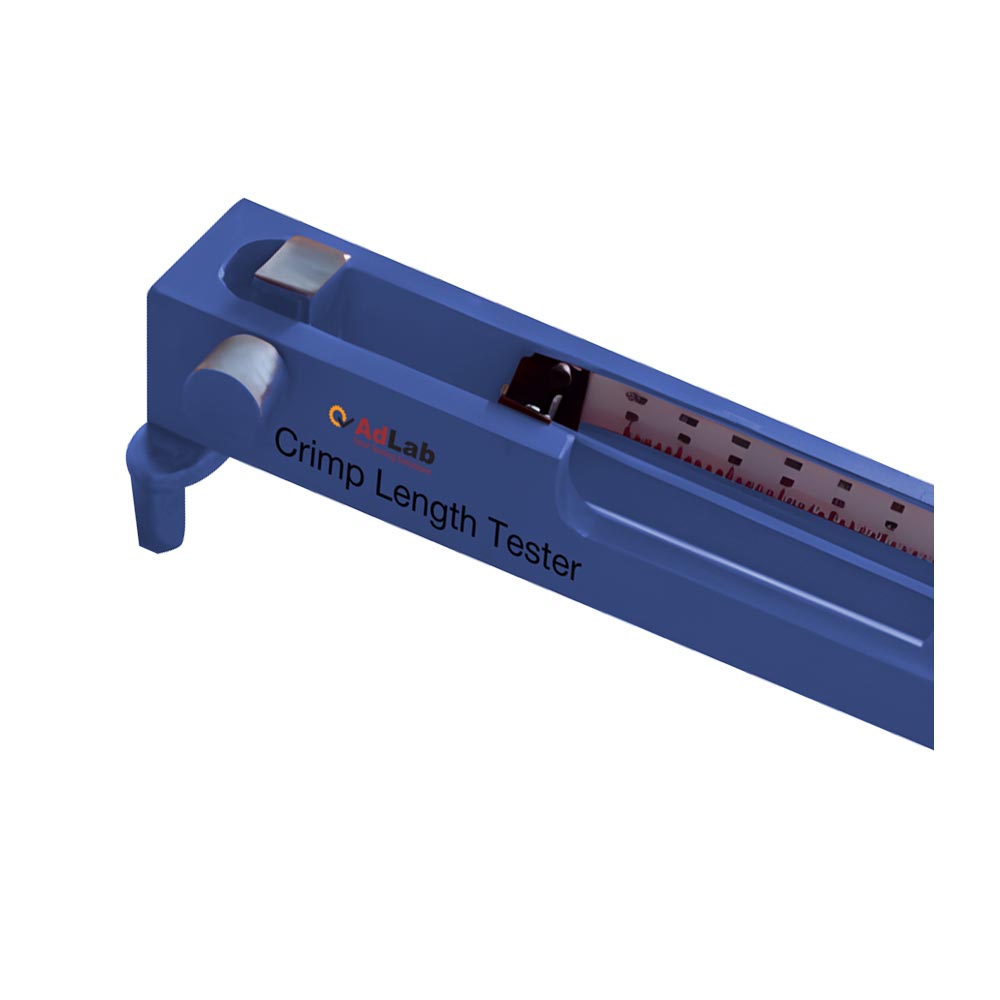

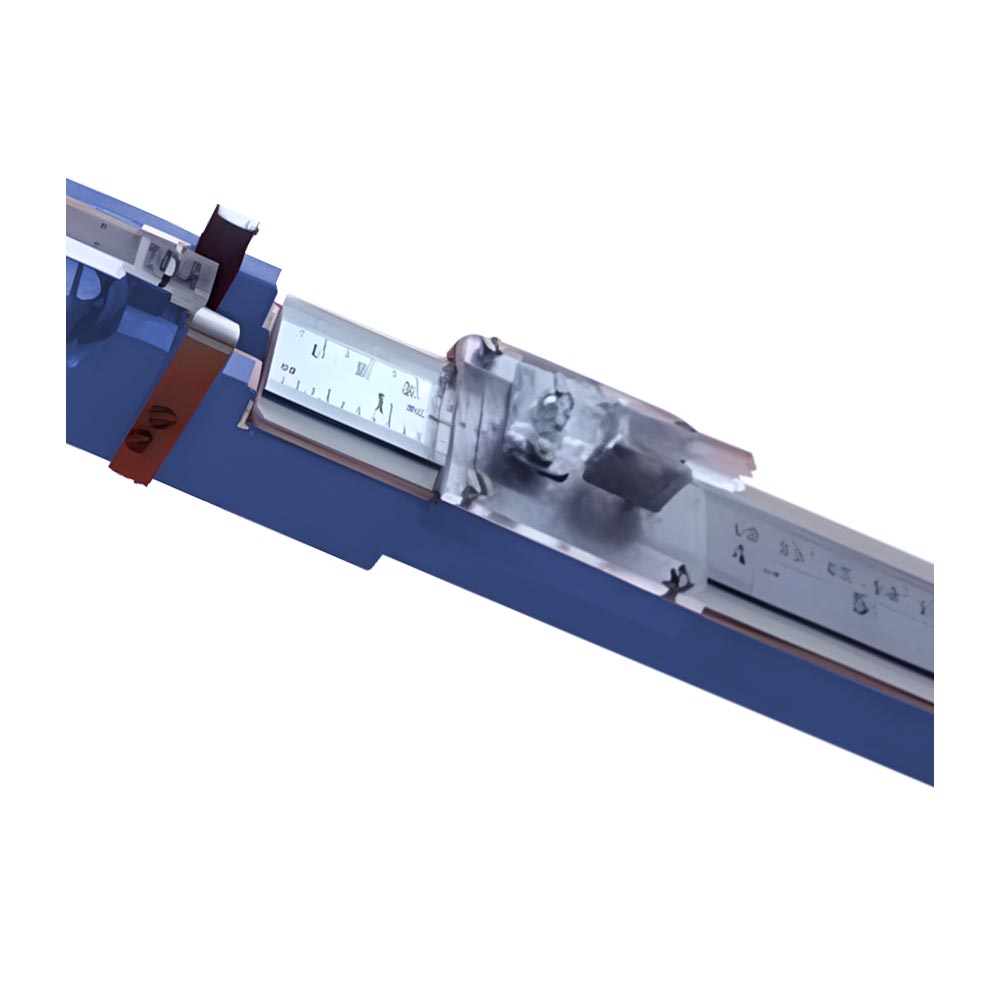

Crimp Length Tester

The Crimp Length Tester is a precision instrument designed to determine the actual yarn usage and bulkiness in fabrics. Ideal for both woven and knitted textiles, it provides accurate measurements of crimp length, helping manufacturers evaluate fabric quality and yarn efficiency. This tester features a modern, economical design with simple operation and comes with a straightening tension check weight. Available in test ranges of 0.5, 1.0, and 1.5 meters, it supports international standards including ASTM D3883, ISO 7211-3, BS 2863/2865/2866, IS 3442, and IWSTM 169, ensuring consistent and reliable results for quality control and textile research applications.

Features

• Determine actual yarn usage and bulkiness in fabrics.
• Latest economic design with modern esthetics.
• Simple operation.
• Supply with a straightening tension check weight.
• Available in 0.5, 1.0 and 1.5meters range.

Technical Data

• Maximum Test Length – 600 mm (2 Feet)
• Maximum Elongation – 150 mm
• Tension load – Up to 175 grams
• Applicable Standard(s) – ASTM D3883, ISO 7211-3, BS 2863 / 2865 / 2866, IS 3442 & IWSTM 169
• Physical Dimensions – Size (WDH): 910 x 80 x 70 mm
  Weight: 2 kg

Scope of Supply

1) Main Unit – 1 No.

2) Accessories: Tensioning Weight (35 g and 175 g) – 2 Nos.,

3) Documents: User’s guide, Warranty certificate, Test certificate & Calibration certificate.

Optional Supply: Fabric Count Balance (MAG FabyCount)

Prerequisites for Installation

Suitable working table, Test samples and suitably qualified operator.

Why Choose Crimp Length Tester?

The Crimp Length Tester is essential for textile manufacturers, laboratories, and quality control teams focused on precise fabric and yarn analysis. Its compact yet durable design allows for easy handling, while the included straightening tension check weights ensure consistent testing conditions. With a maximum test length of 600 mm and elongation of 150 mm, it accurately determines yarn bulkiness and actual usage in woven and knitted fabrics. Lightweight (2 kg) and compliant with ASTM D3883, ISO 7211-3, BS, IS, and IWSTM standards, it delivers reliable, repeatable results. Optional accessories like the Fabric Count Balance (MAG FabyCount) enhance its versatility. This tester simplifies production quality assessment, improves yarn efficiency, and supports adherence to international textile standards.
