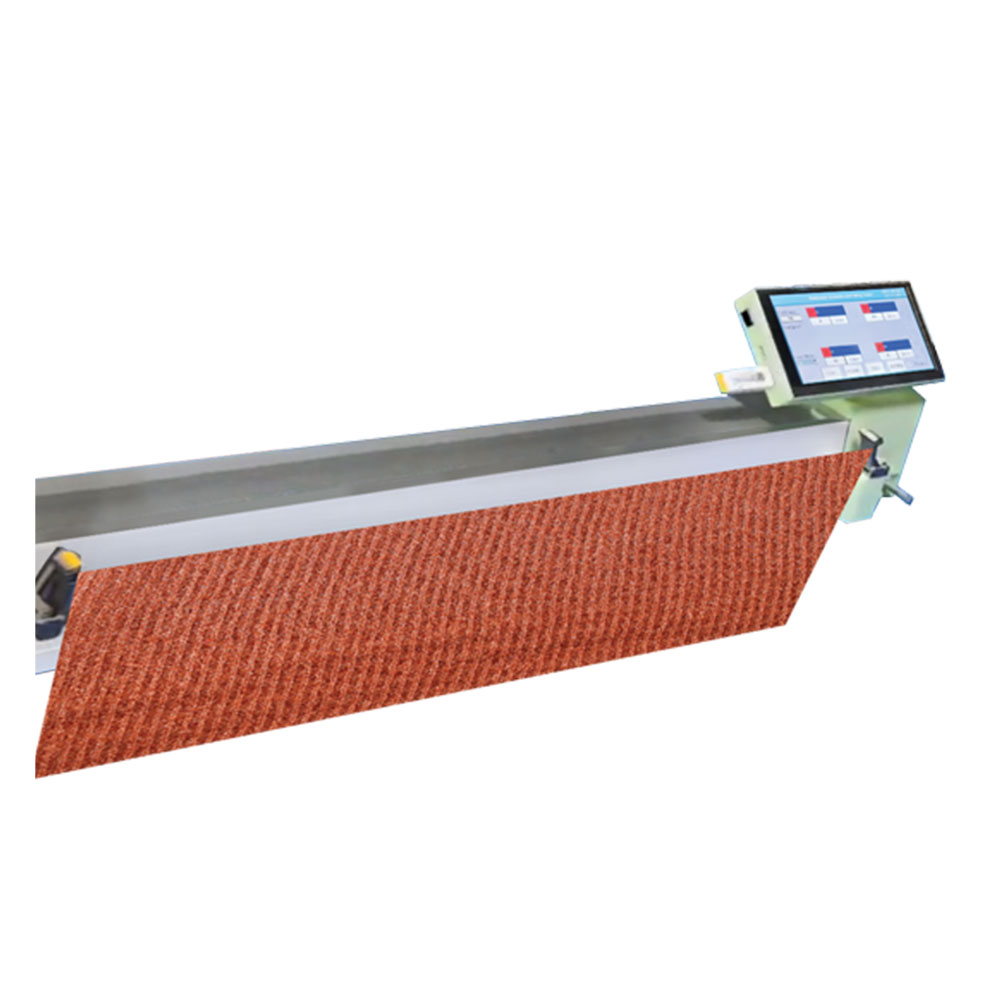

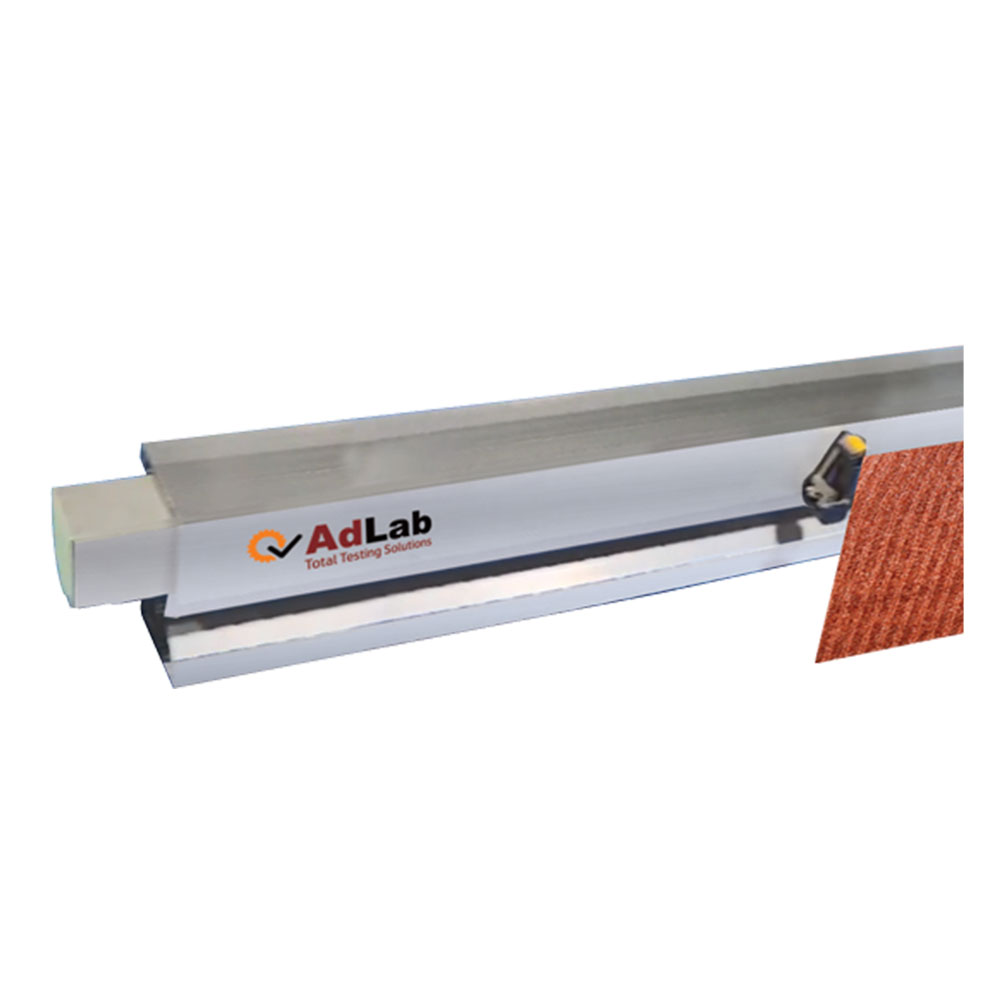

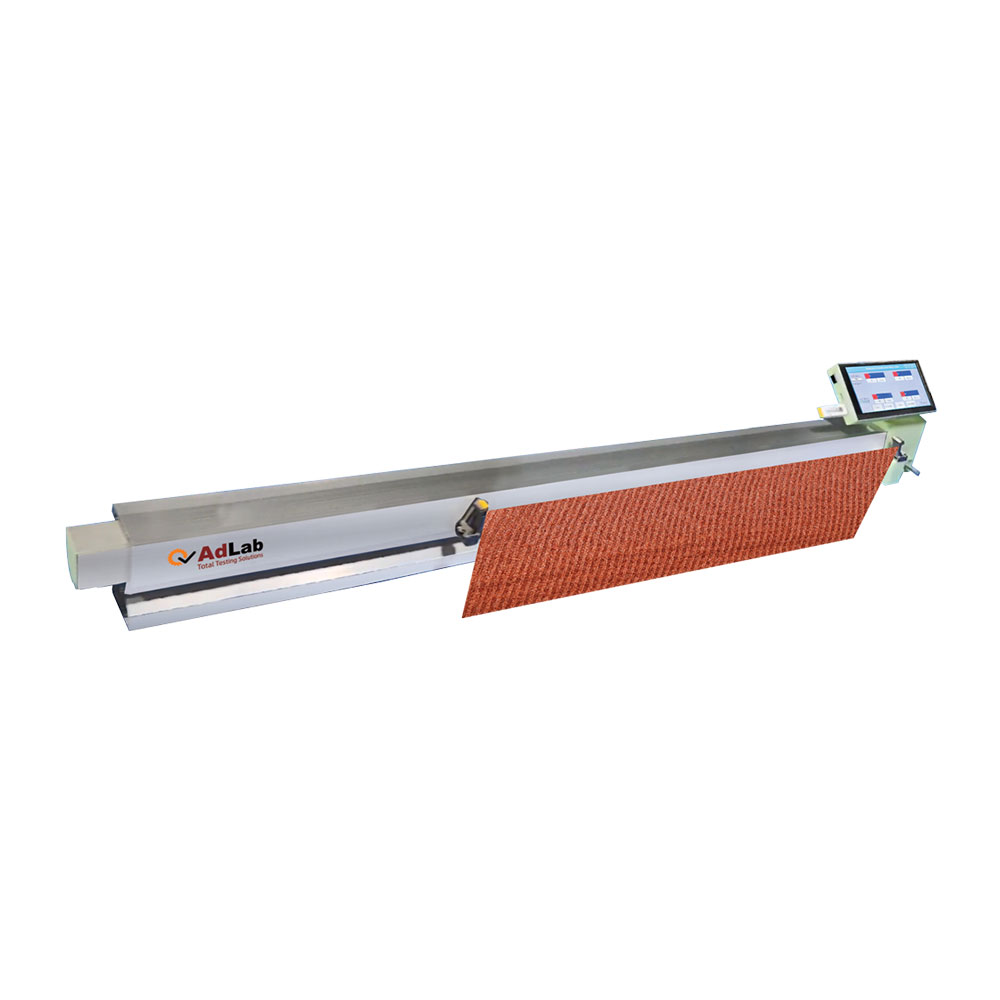

Electronic Measuring Sweater Knitted Fabric Stretch Tester

The Electronic Measuring Sweater Knitted Fabric Stretch Tester is a precision instrument designed for the sweater and knitted fabric industry. It accurately measures the stretch, tension, and crimp behavior of sweater panels and knitted fabrics, helping manufacturers maintain quality and uniformity. With a high measurement-control rate of 100 times per second and 1g resolution. This tester ensures precise data capture for both research and production environments. Its adjustable range of 4–83 inches accommodates various garment sizes, making it ideal for textile labs and quality control in the sweater manufacturing process. Compact, durable, and easy to operate, it supports efficient fabric testing and reliable results.

Technical Parameters

• Measurement-Control Rate: 100 times per second
• Resolution Ratio: 1g
• Range: Approximately 4–83 inches
• Rated Voltage: 100V–240V
• Rated Current: 0.3A–0.6A
• Body Dimensions: 1255 x 66 x 172mm
• Package Size: 1350 x 120 x 240mm
• Gross Weight: 25kg

Why Choose the Measuring Stretch Tester Machine?

The Electronic Measuring Sweater Knitted Fabric Stretch Tester is essential for ensuring consistent quality in the sweater and knitted fabric industry. It delivers high-precision measurements at a control rate of 100 times per second. With 1g resolution for accurate tension and crimp assessment. Its range of 4–83 inches supports panels of various sizes, while its robust design ensures durability and long-term performance. Lightweight yet sturdy, it weighs 25 kg, with a compact body size suitable for lab and production use. Rated for 100–240V and 0.3–0.6A, it operates efficiently under standard electrical conditions. By using this tester, manufacturers can optimize fabric stretch, improve product quality, reduce defects, and adhere to industry standards in knitted garment production.
